Uncoiling payoff unit load coiled tubes and unwinding, work. You have different choices of uncoiling systems like eye to wall tube decoiler,eye to sky pipe decoiler, vertical tube uncoiler, horizontal pipe uncoiling etc. It also can be equipped with pneumatic or servo brake and synchronous systems which fit to the tube cut to length machine.

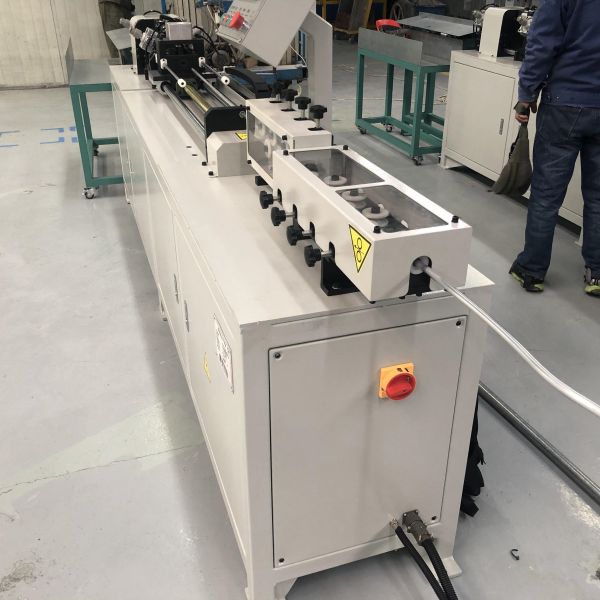

Straightening rollers make tubes to be straightened and rounded by two sets of rollers groups in horizontal and vertical directions. Its tube diameter range from 4 to 20mm. The straightening rollers are made by Cr12Mov hardened for long wearing time service. Straightening wheels with multi-radius for good roundness of tubes
Traction institutions for pulling the tube to pass through straightening rollers passively which are driven by servo motors.
Encoder for measuring the tube length.

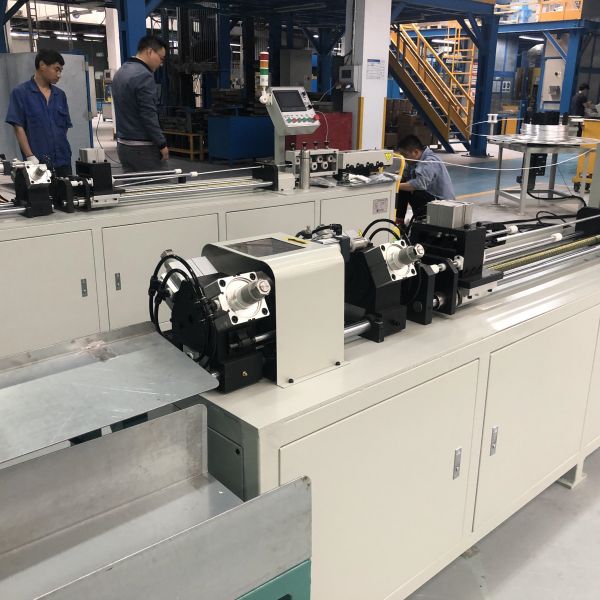

Electric control system makes full parts of the machine connected and controlled. Cutting clamping dies cut off the tubes. Automatic rotary cut-off machine allows the orbital cut of copper tube unwinding from the pipe coil. The chipless (burr free disc cutting with no chips) tube cutting is achieved by clamping toolings with pneumatic and comes with PLC control and servo systems. It’s no material loss between pipe cuts,no need extra deburring system.
Unloading table to stock pipes that have been straightened and cut , can reverse material automatically by pneumatic drive.
Furthermore, we developed more tube cutting machines suitable for different industries and materials. Like stainless steel tube straightening and cutting machines for shell tube condenser and chiller, Steel tube straightening and cutting machines for tubular heating elements, Bundy tube straightening and cutting machines for refrigeration, Aluminum pipe straightening and cutting machines for automotive and household A/C air conditioners, Capillary tube straightening and cutting machine for refrigeration and medical, Copper tube straightening and cutting machine for heat sink pipe etc.
Inline tube end forming can be integrated after pipe cutting process to achieve full automatic pipe cutting and end forming.
