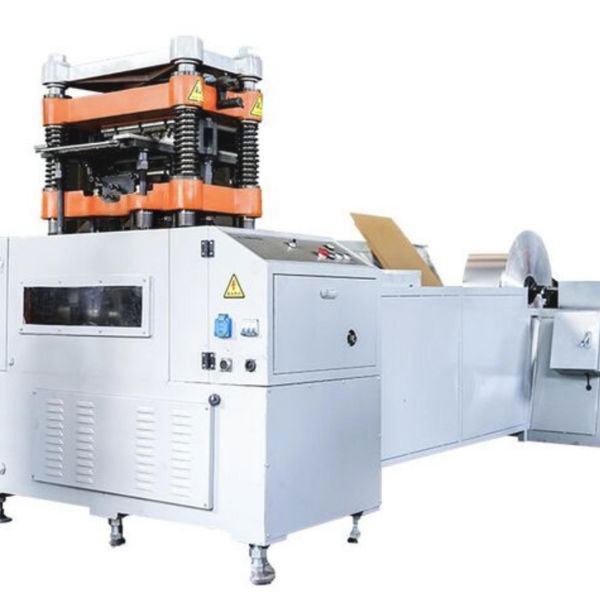

Plate Fin Press Forming Machine

Plate fin heat exchangers manufactured by swing fin punch press, it well known as brazed aluminum heat exchangers. A plate-fin heat exchanger is designed to use plates and finned chambers to transfer heat between fluids, most commonly gases. its ability to facilitate heat transfer with small temperature differences is utilized.

Category:

Applications

Plate Fin Press Forming Machine is widely used in:

  • Chemical plants and natural gas processing for optimal heat exchange

  • Automotive sector: engines, radiators, intercoolers, and cooling systems

  • Aviation and military: stainless steel plate fins for aircraft

  • Air conditioning and refrigeration: enhancing heat dissipation

  • Hydraulic oil cooling: efficient heat transfer

  • Engineering and mining machinery: heavy machinery cooling

  • Compressors: improving cooling efficiency

Precision

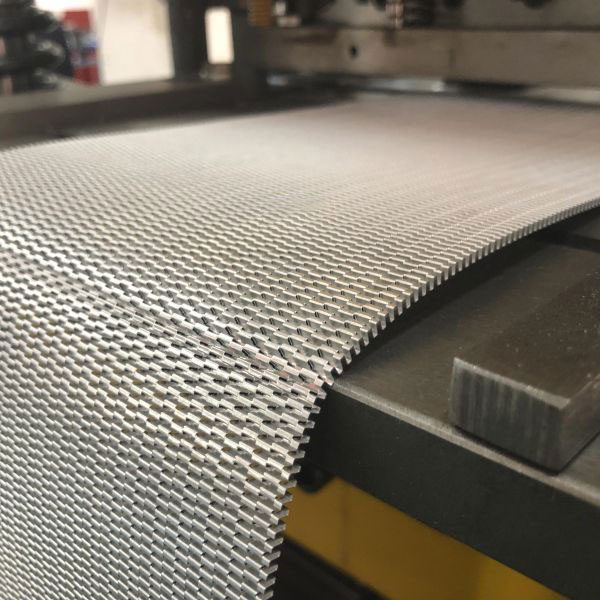

  • Produces complex-shaped fins for improved heat transfer efficiency

  • Compatible with various materials: copper, aluminum alloy, stainless steel

  • Supports multiple fin types: offset strip, plain rectangular, triangular, wavy, straight, perforated, louvered, corrugated, inner, serrated, multi empty, trapezoidal, herringbone

Quick Die Replacement

  • Enables rapid die change, reducing downtime during production

Enhanced Transmission Design

  • Equipped with helical gear gearbox and flywheel

  • Ensures smooth transmission, high load-bearing capacity, and improved sprint speed

Automatic Lubrication System

  • Extends equipment lifespan

  • Reduces lubrication-related failures

Stepless Speed Regulation

  • Variable frequency system allows stepless speed adjustment

  • Supports jog and manual debugging for easy mold adjustment

Adjustable Stroke for Different Fin Waves

  • Lower platen feeding device allows easy adjustment of fin wave distances

  • Suitable for different corrugation lengths

Automatic Servo Fin Cut to Length Machine

  • Controls plate fin feeding and cutting length with servo-driven geared roller

  • PLC-controlled cutting blade ensures accurate fin length and wave numbers
