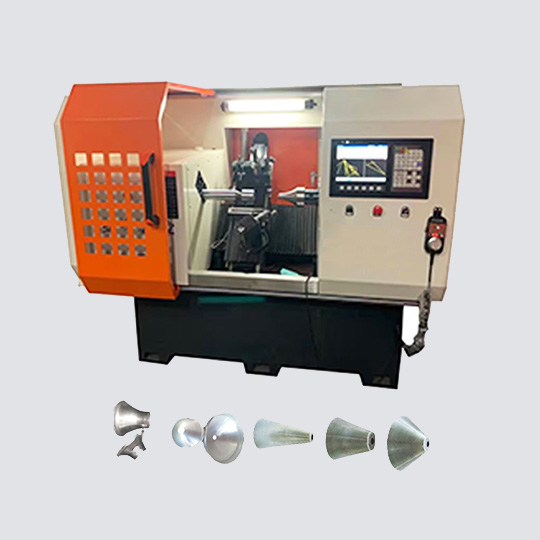

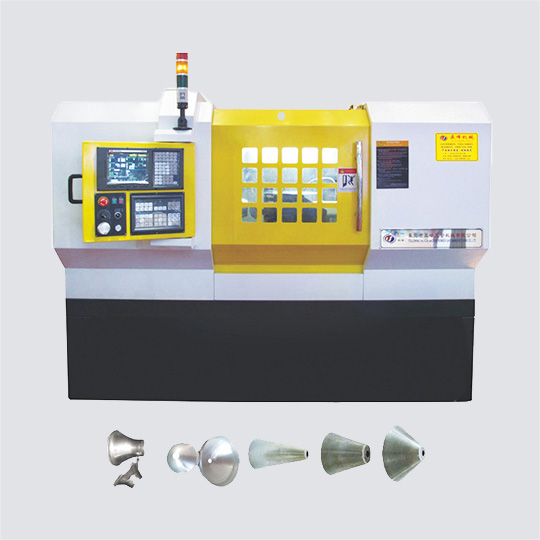

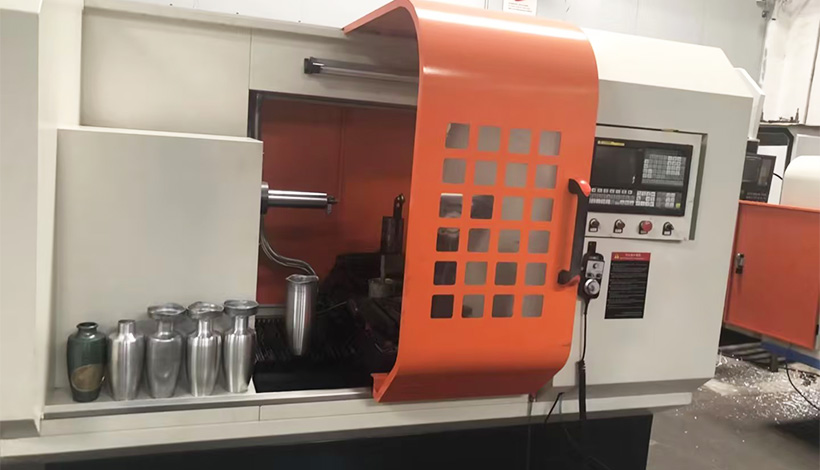

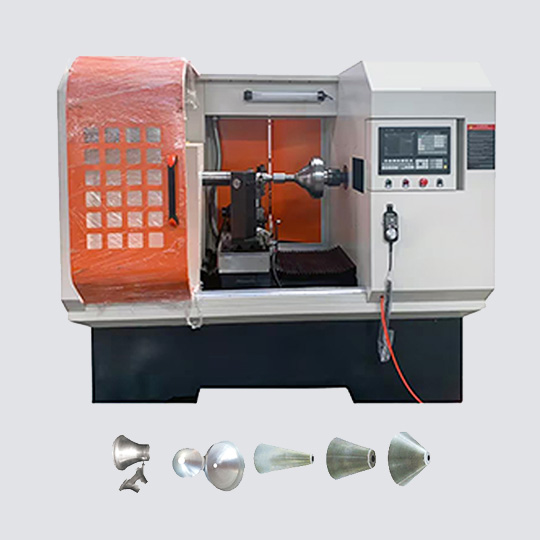

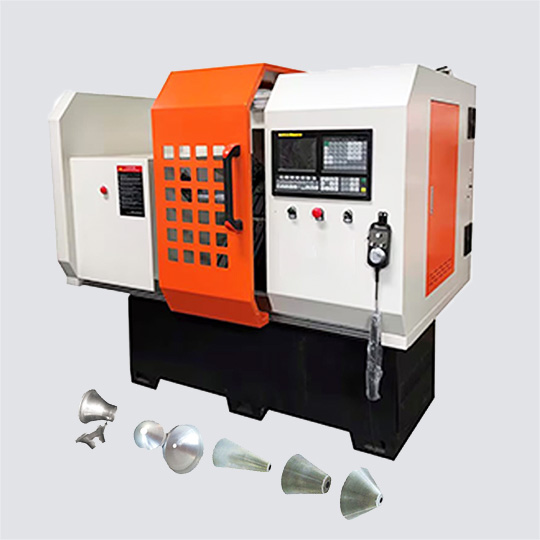

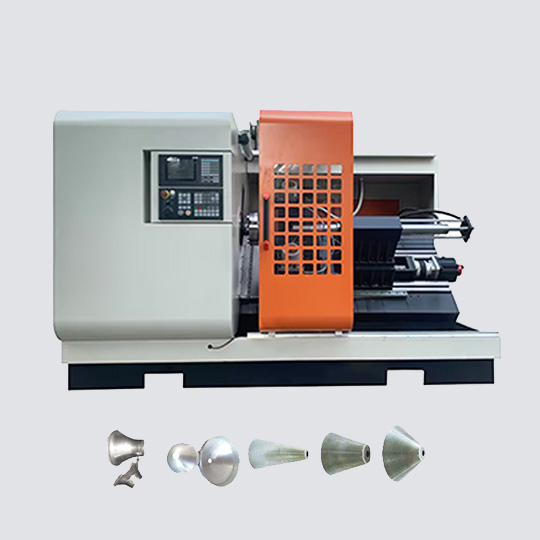

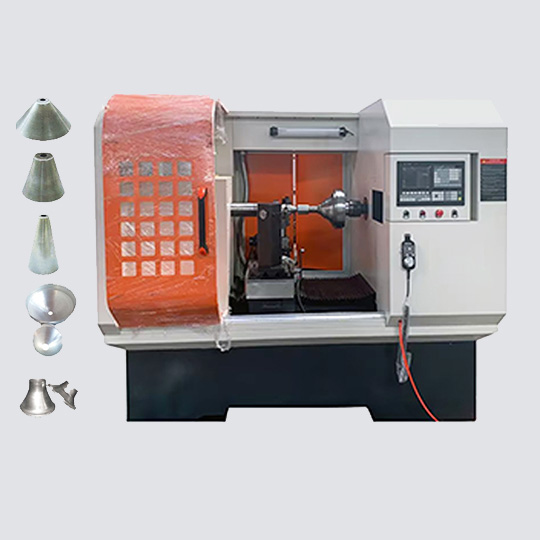

Sheet Metal Spinning Machine
Sheet Metal Spinning Machines Use Rotational Force And Controlled Pressure To Form Flat Or Tubular Metal Blanks Into Axisymmetric Parts.
What Is Sheet Metal Spinning Machine?
Sheet Metal Spinning Machine Is a High-Performance, High-Precision Metal Processing Equipment, Using Advanced CNC Technology And Spinning Technology, Specially Designed For The Production And Processing Of Metal Products. The Machine Has Excellent Stability And Reliability, And Can Meet The Needs Of Metal Spinning Of Various Complex Shapes And Sizes.
| Thickness Of Workpiece | 0.5 Mm- 2.0 Mm Aluminum/Copper 0.5 Mm-1.2Mm(Iron) 0.5-0.8 Mm (Stainless Steel) | X/Z Axis Pulse Equivalent | 0.001 Mm |
| The Max Material Diameter | 600mm | Positioning Accuracy | 0.01 Mm |
| The Max Rotary Diameter Over The Plate | 230 Mm | Repositioning Accuracy | 0.005 Mm |
| Max Length Of Workpiece | 250 Mm | Spindle Bore Thrust | Tooth Connection |
| X/Z Axis Travel | 500 Mm/370 Mm | Spindle Bore Diameter(Blowing) | 10 Mm |
| Z Axis Thrust | 20 Kn | Spindle Speed | 3000 Rpm |
| The Tailstock Thrust | 20 Kn | Diameter Of Tailstock Sleeve | 40 Mm |
| Guide Rail | Liner Guide Rail | Tailstock Stroke | 300 Mm |
| Width Of Lathe Bed | 800 Mm | Tailstock Sleeve Movement | 200 Mm |
| X/Z Axis Fast Feed Speed | 10/15 M/Min | Weight | 1620 Kg |
More Product Model
- Metal Spinning Machine
- CNC Tube Spinning Machine
- Sheet Metal Spinning Machine
Sheet Metal Spinning Machine
- High-Precision Machining
- Versatile Processing Capabilities
- User-Friendly Programming
- Durable And Reliable Components
- Comprehensive Support
Product Advantage
- High Precision And Consistency
- Computer-Controlled Or CNC-Driven Spinning Machines Ensure Precise Forming
- Material Efficiency
- The Process Reduces Costs And Supports Sustainable Manufacturing By Forming Parts From a Single Sheet
- Design Versatility
- Ability To Create Complex, Symmetrical Shapes That Are Difficult To Achieve Through Stamping Or Welding
- Cost-Effective Tooling
- Requires Simpler, Less Expensive Dies Than Stamping Or Casting
- Increased Material Strength
- Work Hardening During Spinning Increases Part Durability
- Smooth Surface Finish
- Produces Parts With Minimal Seams Or Joints, Reducing The Need For Post-Process Polishing Or Grinding
- Material Adaptability
- Applicable To a Wide Range Of Metals And Thicknesses
- Fast Production Cycle
- Quick Setup And Automated Operation For Fast Turnaround Times
Product Application
- Kitchenware Manufacturing
- Lighting Fixtures
- Automotive Parts
- Aerospace Components
- Decorative And Artistic Items
- Industrial Equipment
