Secondary degassing machine

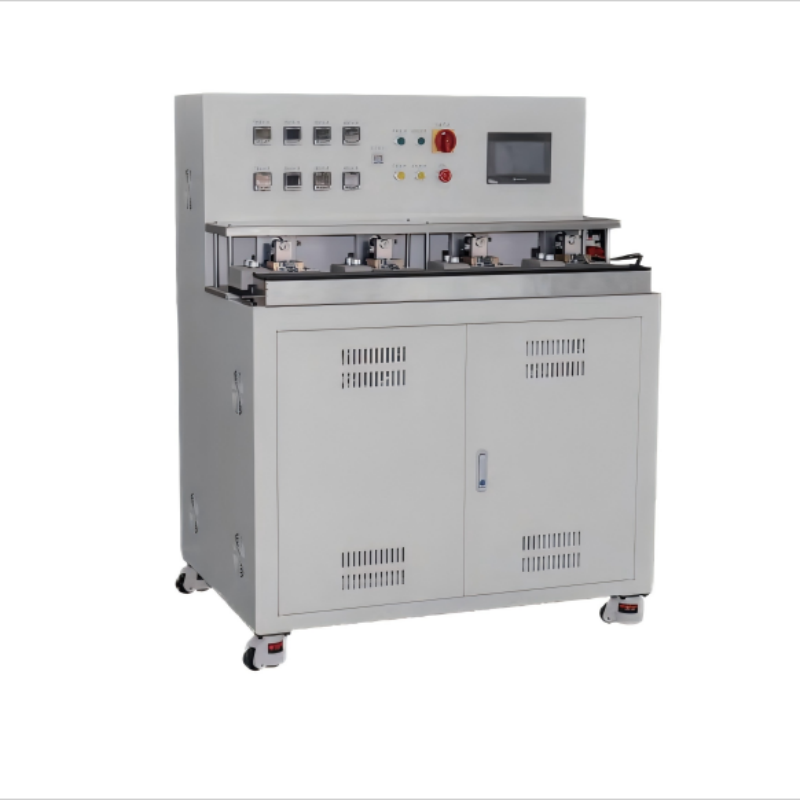

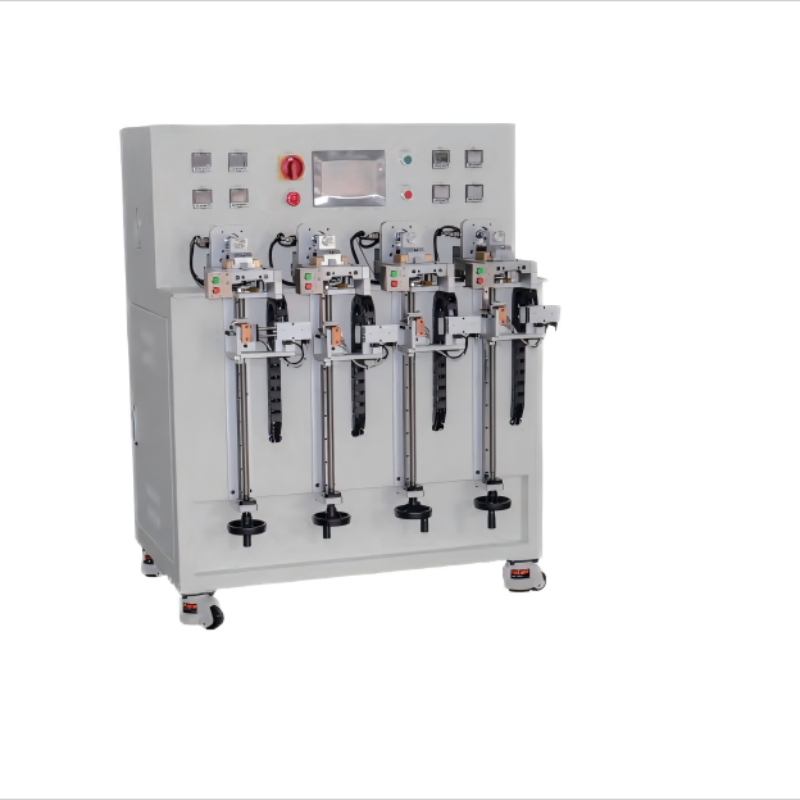

Secondary Degassing Machine

A Secondary Degassing Machine is an essential piece of equipment in finned tube or heat exchanger production lines, used to remove residual gases, moisture, or air bubbles after the primary degassing or initial processing. This step ensures optimal bonding, welding, or fin attachment, and guarantees high-quality thermal performance in the final product.

Key Features

• Effectively eliminates residual gases and moisture

• Ensures uniform quality and reliable performance

• Adjustable for different tube diameters and lengths

• Stable operation with minimal maintenance

• Improves efficiency and reduces product defects

Applicable Type: Mobile Phone Heat Pipes
Workstations: Four-station
Equipment Use: For heat pipe degassing and length determination
Working Mode: Time-based mode
Dimensions: 1200*1000*1500MM
Power Configuration: 380V three-phase 2.5KW
Processed Product Specifications: D2, D3, D4, D5, D6, D8

Processing Length: 50-300MM
Equipment Capacity: Depends on product characteristics
Control System: Mitsubishi PLC + Weintek Touch Screen
Sealing Method: U-shaped

Applicable Type: Conventional heat pipe
Workstations: 4-station
Equipment Use: For heat pipe degassing and length determination
Working Mode: Time mode + Temperature sensing mode
Sealing Method: U-shaped
Dimensions: 1200*1000*1500MM
Power Configuration: 380V three-phase 2.5KW
Processing Product Specifications: D5, D6, D8

Processing Length: 150-500MM
Equipment Capacity: Depends on product characteristics
Control System: Mitsubishi PLC + Weintek Touch Screen

Applicable Type: Suitable for both ultra-thin and conventional tubes
Workstations: 4 stations
Equipment Use: For heat pipe degassing and fixed-length processing
Working Mode: Time-based mode
Sealing Method: U-shaped
Dimensions: 1200*1000*1500MM
Power Configuration: 380V three-phase 2.5KW processing
Product Specifications: D2, D3, D4, D5, D6, D8
Processing Length: 80-500MM
Equipment Capacity: Depends on product characteristics
Control System: Mitsubishi PLC + Weintek Touch Screen
