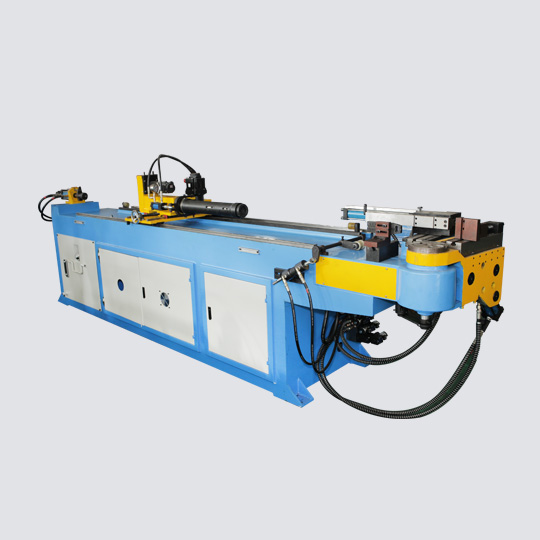

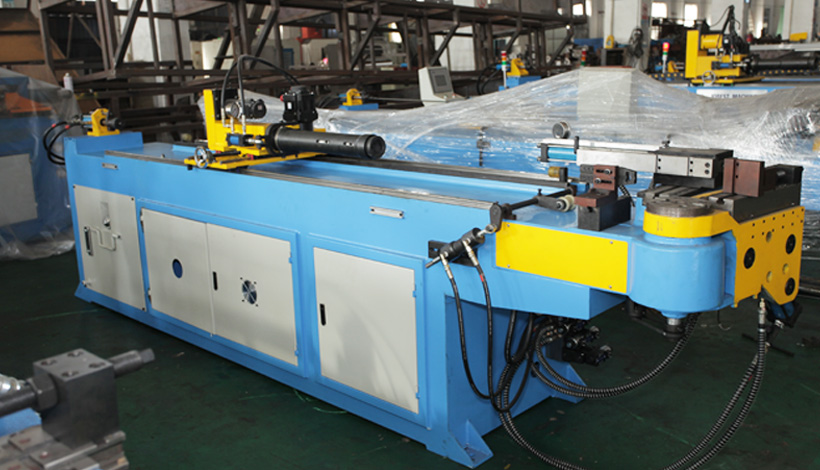

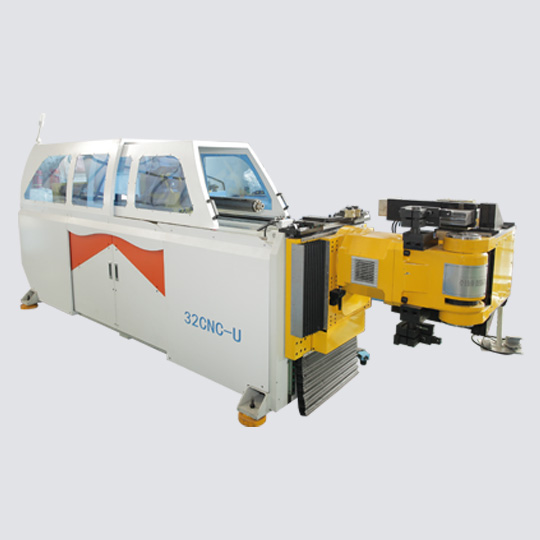

Pipe Bending Machine
We Have An Experienced Team Capable Of Providing Our Customers With High Quality Machinery And Excellent Service.
Bending Pipe With Servo Motor Drive,High Precise Bending Angle And Compensation Value.
The Cornering And Feeding Are Driven By Servo Motors, Which Are Highly Efficient, Accurate In Cornering Angle And Feeding.
What Is Pipe Bending Machine?
Pipe Bending Machine Is An Industrial Device Designed To Bend Pipes, Tubes, Or Hollow Profiles Into Specific Angles Or Shapes Without Compromising Structural Integrity. These Machines Are Critical In Industries Requiring Custom Pipe Configurations For Fluid Transport, Structural Frameworks, Or Aesthetic Designs.
- Bending Pipe With Servo Motor Drive,High Precise BendingAngle And Compensation Value.
- Corner And Feeding Is Drived By Servo Motor, High Efficiency,Accurate Bending Angle And Feeding.
- It Is Very Suitable For Many Spatial Angles And High-RequirementOf Precision, E.G. Processing For Oil Tube Of Car, Air Conditional Tube, Frame Of Bicycle And Motorcycle Etc.
| Maximum Bending Diameter | ø4.76 Inch Steel Tube |
| Working Accuracy | Bending ±0.1°, Linear ±0.1 Mm, Rotation ±0.1° |
| Wheel Set Layers | 6 Layers, Two Molds, Maximum Radius Difference 15 Mm |
| Maximum Bending Angle | 180° |
| Maximum Bending Radius | 40mm |
| Minimum Bending Radius | 10mm |
| Linear Effective Stroke | 1.6m |
| Linear Feed Method | Ball Screw And Linear Guide |
| Pneumatic System | Working Pressure 0.5-0.7 Mpa |
| Overall Dimensions | 2400 (L) x 1380 (W) x 1700 (H) Mm |
| Machine Power | 4Kw |
| Equipment Net Weight | 1.5T |
| Mold Change Method | Servo Drive |
More Product Model

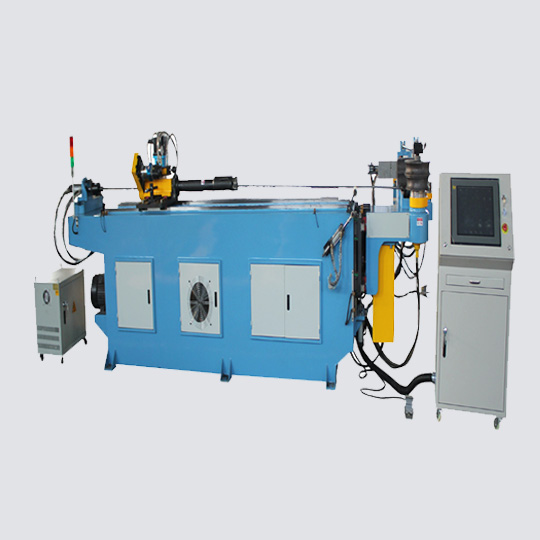

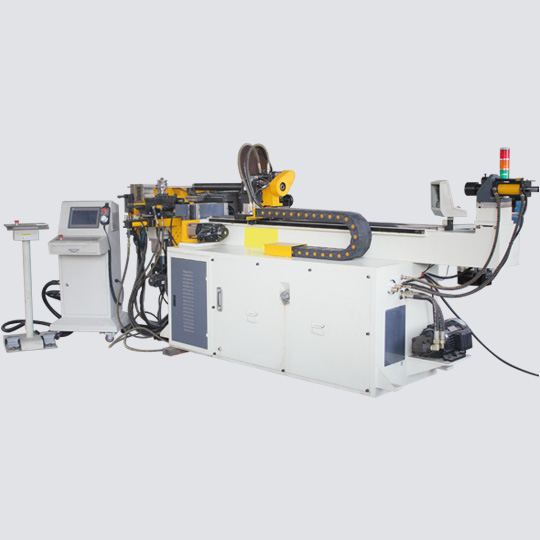

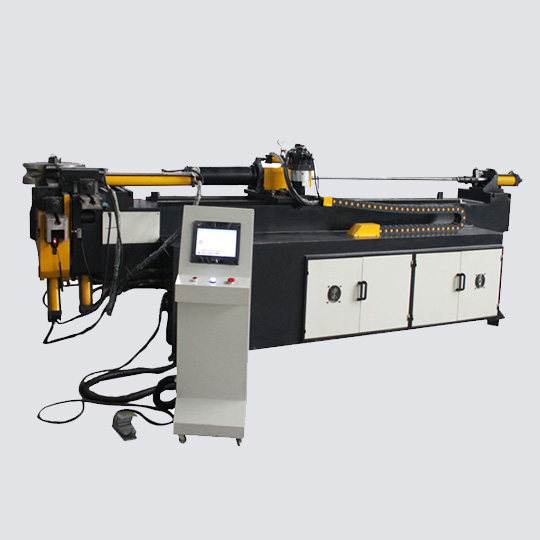

CNC Pipe Bending Machine

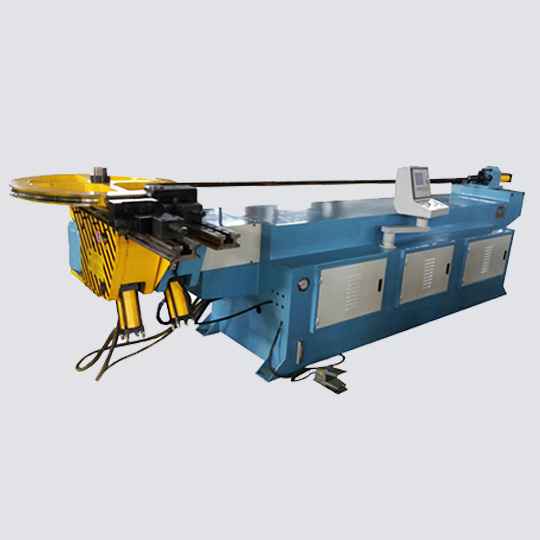

Hydraulic Pipe Bending Machine
Double-End Pipe Bending Machine
Pipe Bending Machine
High Precision Pipe Bending Machine | Bangwin Machine
Product Advantage
High-Precision Bending
±0.1°Angular Accuracy Using CNC Controlled Servo Motors
Multi-Material Compatibility
Bends Stainless Steel, Carbon Steel, Aluminum, Copper And PVC Pipes
Automated Operation
Programmable Memory For Over 100 Bend Profiles
High-Speed Production
30-60 Bends Per Hour (Depending On Complexity)
Space-Saving Design
Compact Floor-Standing Or Portable Models
Energy Efficiency
40% Reduction In Power Consumption Using Servo-Electric Drives
Multiple Bending Methods
Supports Rotary Drawing, Roll Bending And Mandrel Bending
Durability And Low Maintenance
Hardened Steel Dies And Self-Lubricating Guides Withstand Heavy Use
Product Application
- Automotive Exhaust Systems
- HVAC & Refrigeration
- Oil & Gas Pipelines
- Furniture & Architecture
- Aerospace Hydraulics
- Renewable Energy
