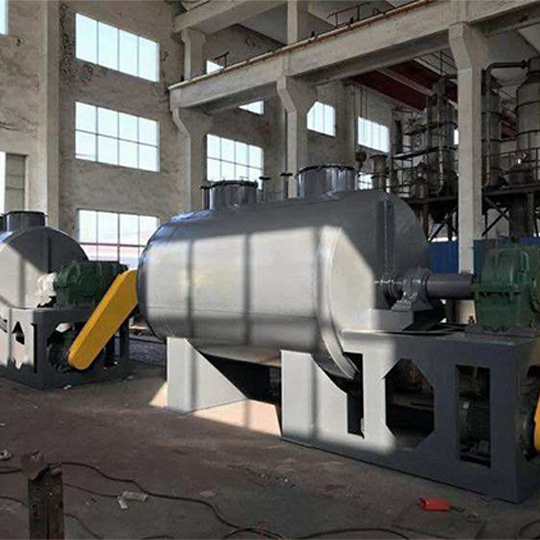

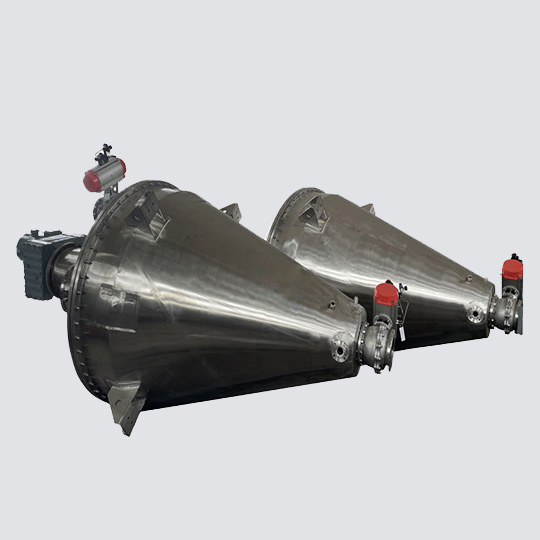

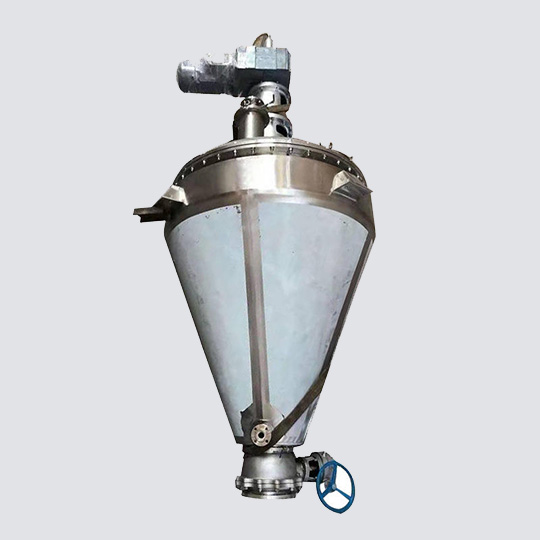

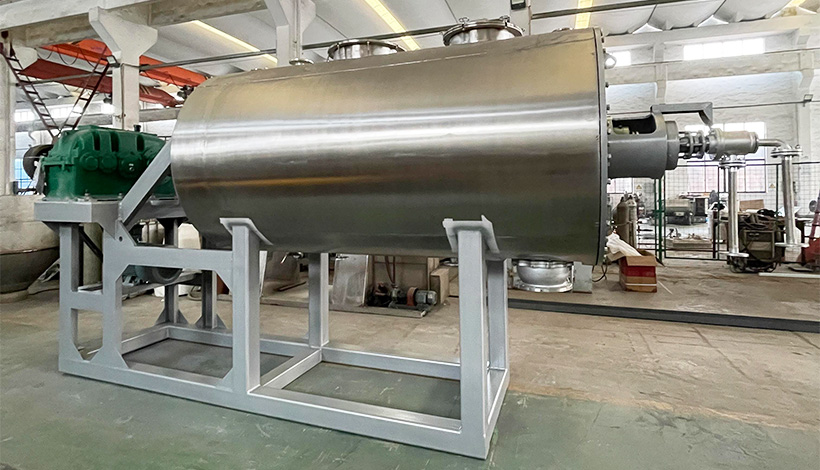

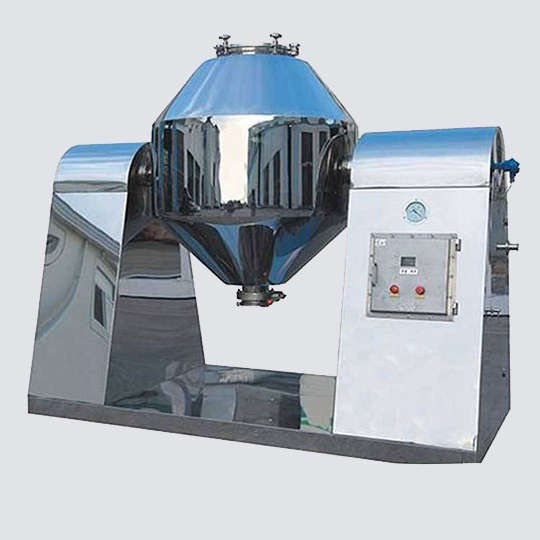

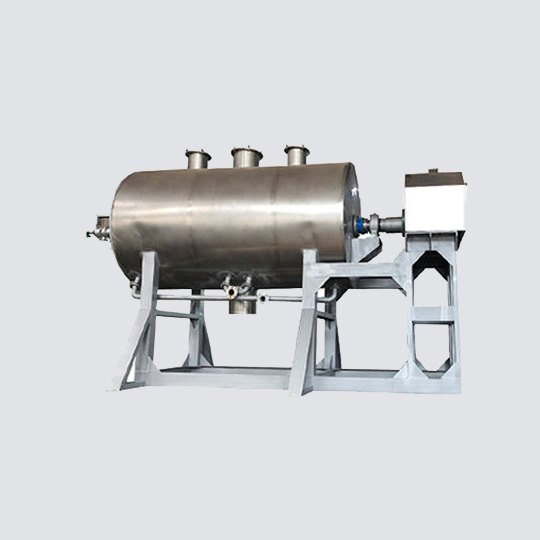

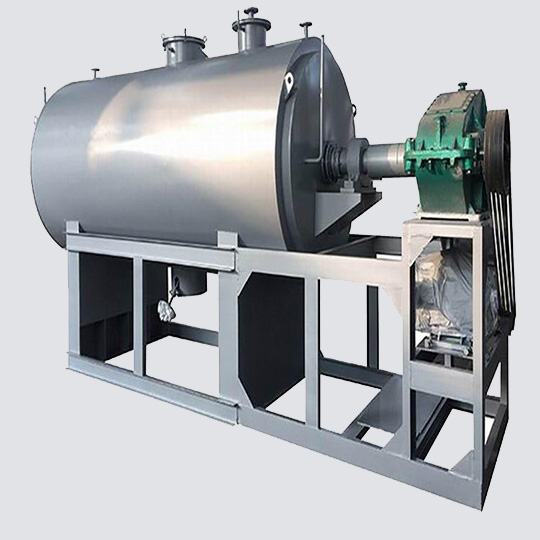

Vacuum Dryer
The Raw Material Exists At The State Of Vacuum. The Drop Of Team Pressure Makes The Moisture (Solvent) At The Surface Of Raw Material Become Saturation And Will Evaporate. The Solvent Will Be Discharged Through Vacuum Pump An Drecovered In Time. The Inner Moisture (Solvent) Of Raw Material Will Infiltrate, Evaporate And Discharge Continuously. The Three Processes Are Carried Outunceasingly And The Purpose Of Drying Can Be Realized Within a Short Time.
What Is Vacuum Dryer?
The Vacuum Dryer Is a New Generation Of Drying Equipment In Our Factory. It Has Two Connection Modes: Pulley And Chain. It Runs Smoothly. The Special Design Ensures Good Concentricity Of The Two Shafts. The Heat Medium And Vacuum System Use Imported Reliable Mechanical Seals Or Rotary Joints.
| Volume Inside Of Tank（L） | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 |
| Max.Loading Capacity（L） | 40 | 140 | 200 | 300 | 400 | 600 | 800 | 1400 |
| Max.Loading Weight（Kg） | 20 | 70 | 100 | 150 | 200 | 300 | 400 | 700 |
| Revolution（Rpm） | 3~13 | 6 | 5 | 4 | ||||
| Heating Area （㎡） | 1.1 | 2.3 | 2.8 | 3.9 | 5.1 | 6.5 | 8.2 | 12.2 |
| Power Of Motor（Kw） | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 |
| Occupied Area，Lxw（Mm） | 2160×800 | 2160×800 | 2350×800 | 2560×1000 | 2860×1300 | 3060×1300 | 3260×1400 | 3760×1800 |
| Rotating Height（Mm） | 1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 |
| Design Pressure Inside Of Tank（Mpa） | -0.1~0.15 | |||||||
| Design Pressure Of Jacket（Mpa） | ≤0.3 | |||||||
| Weight（Kg） | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 6400 |
Vacuum Dryer
- Let Heat Source (For Example, Low Pressure Steam Or Heat Conduct Oil) Pass Through The Sealed Jacket. The Heat Will BeTransmitted To Raw Material To Be Dried Through Inner Shell;
- Under Driving Of Power, The Tank Is Rotated Slowly And The Raw Material Inside It Is Mixed Continuously.
More Product Model
Vacuum Dryer
Product Advantage
- Low-Temperature Drying
- Vacuum Dryers Operate Under Reduced Pressure, Lowering The Boiling Point Of Water
- High Efficiency
- The Vacuum Environment Accelerates Moisture Removal, Significantly Reducing Drying Time And Increasing Productivity
- Maintaining Material Properties
- Minimizing Thermal Stress And Oxidation
- Energy Saving
- Lower Temperatures And Faster Cycles Reduce Energy Consumption And Lower Operating Costs
- No Oxidation Risk
- The Absence Of Oxygen In The Vacuum Chamber Prevents Oxidation
- Multiple Material Compatibility
- Applicable To Powders, Slurries, Pastes And Viscous Liquids
- Environmentally Friendly
- Closed System Design Minimizes Emissions
- Precise Control
- Advanced Sensors And Automation Technology Precisely Regulate Temperature, Pressure And Humidity
Product Application
- Pharmaceuticals
- Food Processing
- Chemical Industry
- Electronics Manufacturing
- Laboratory Research
- Ceramic/Advanced Materials
