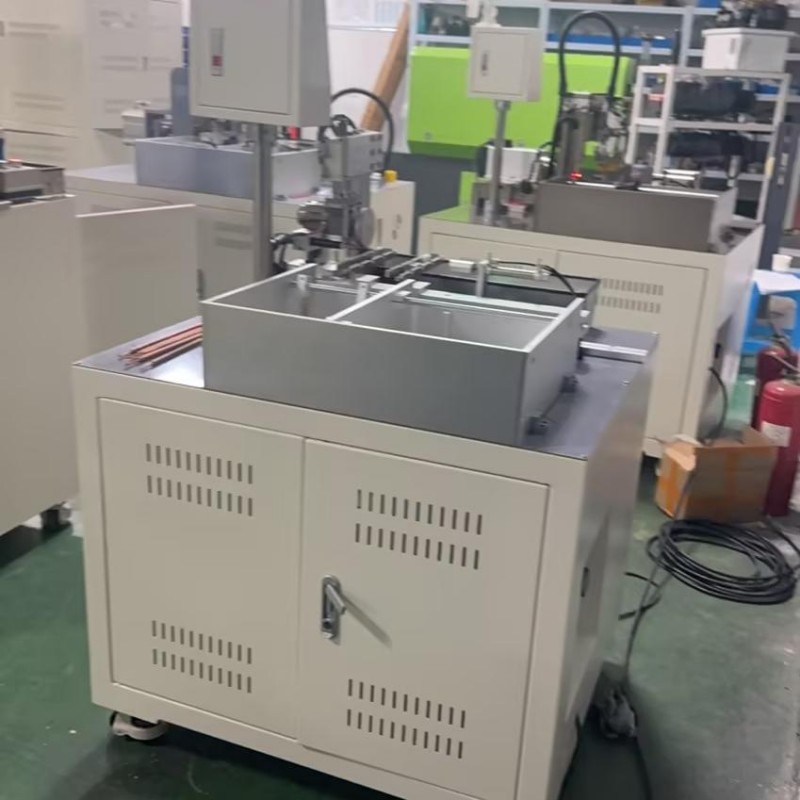

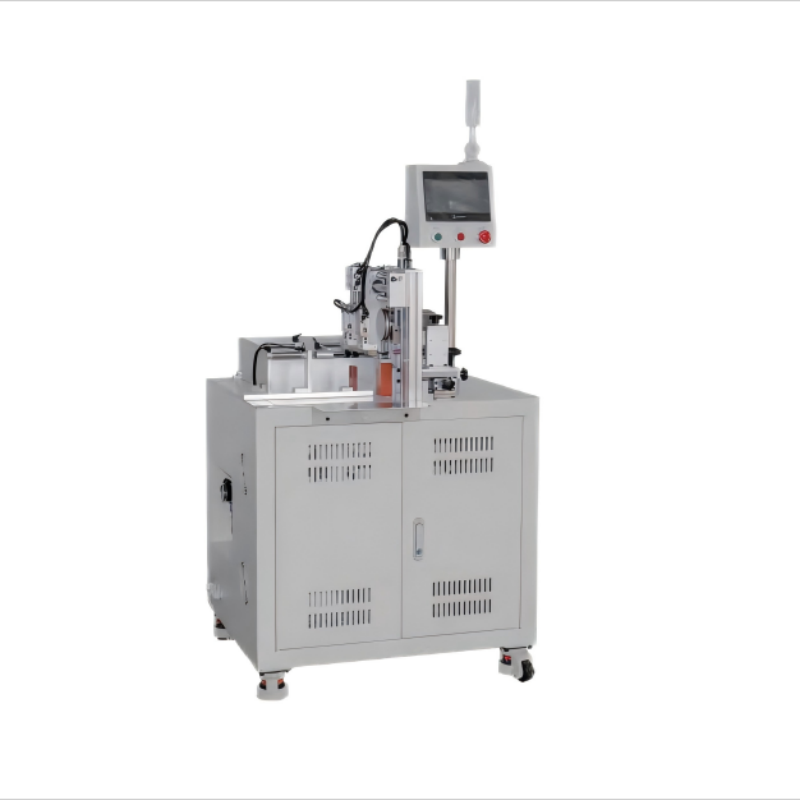

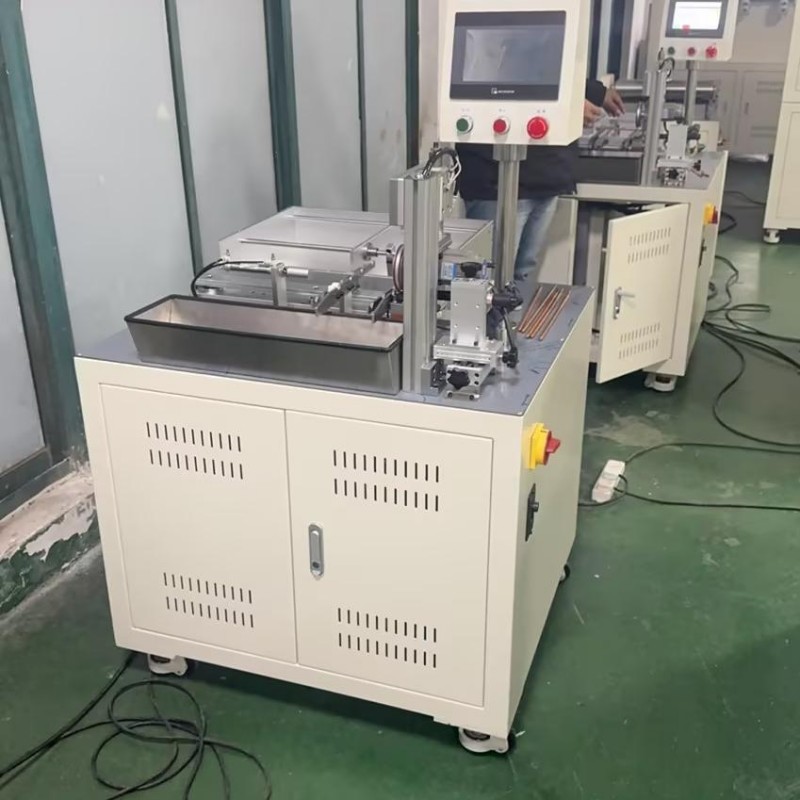

Automatic welding machine

I. Equipment Application

Used for welding the beginning and end of heat pipes in radiators.



II. Equipment Specifications

• External Dimensions: L 850mm * W 800mm * H 1650mm
• Power Configuration: 220V Single Phase 2.5KW
• Machining Diameter: ￠4-￠10
• Machining Length: 80mm-450mm
• Equipment Capacity: Approximately 5 seconds/piece
• Welding Type: Argon Arc Welding
• Consumable Materials: Tungsten rod, graphite wheel

III. Equipment Operation Instructions

After powering on the equipment, turn on the power button → Manually place the product into the hopper → Adjust the product length → Press the start button → The transfer cylinder moves the product → Cylinder positioning → Welding machine processes the product → Finished product removal → Manual material collection → Operation cycle



IV. Equipment Functions

1. The equipment consists of a feeding mechanism, a transfer mechanism, a rotary welding motor, a welding module, and a control system.

2. The feeding mechanism uses a lifting hopper to avoid scratches during feeding and ensures high stability.

3. The transfer mechanism uses a rodless cylinder for transfer, ensuring stable and smooth transfer.

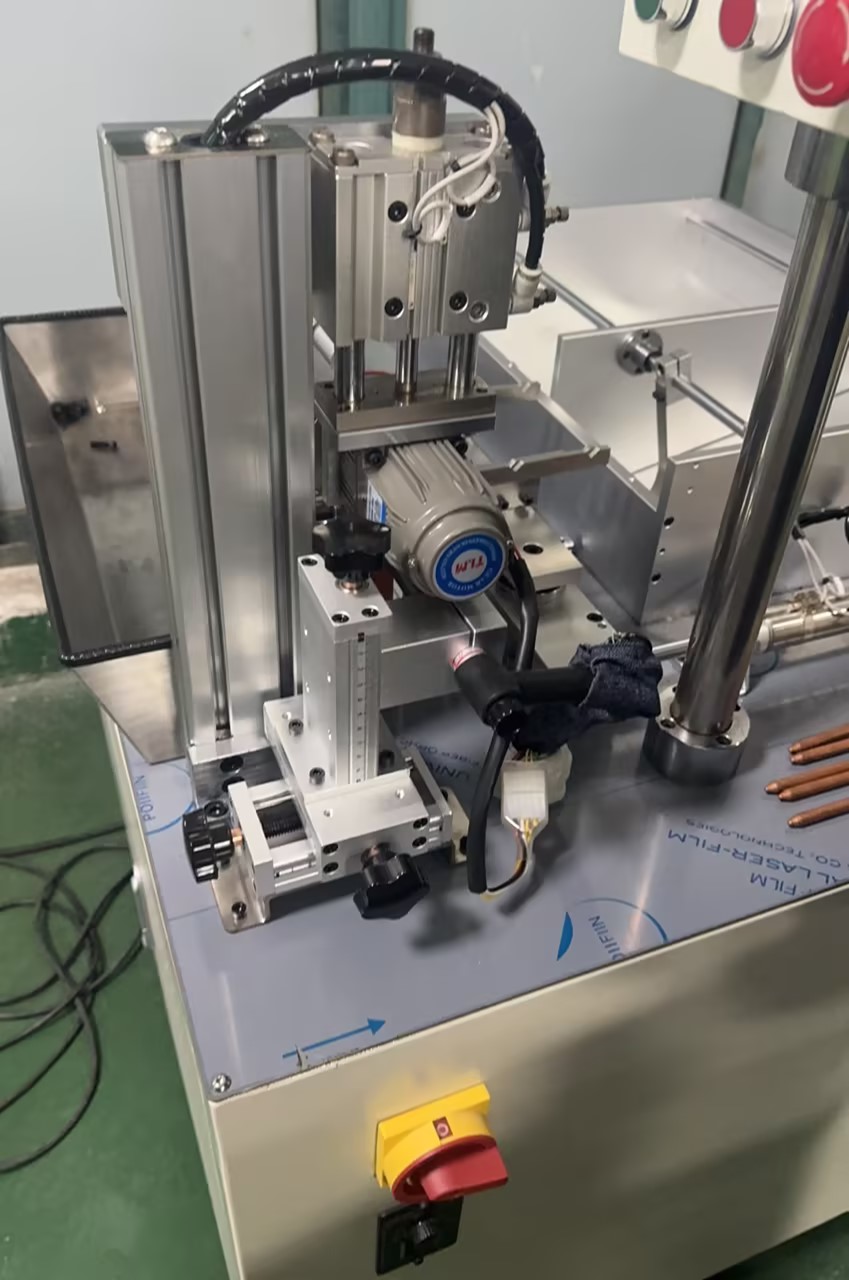

4. The rotary welding motor uses a Taiwan Dongli motor with a reducer, and the welding wheels are covered with silicone rings. This ensures no pressure damage to the product surface during high-speed rotation.

5. The welding part uses an imported welding machine to ensure a smooth and rounded weld surface.

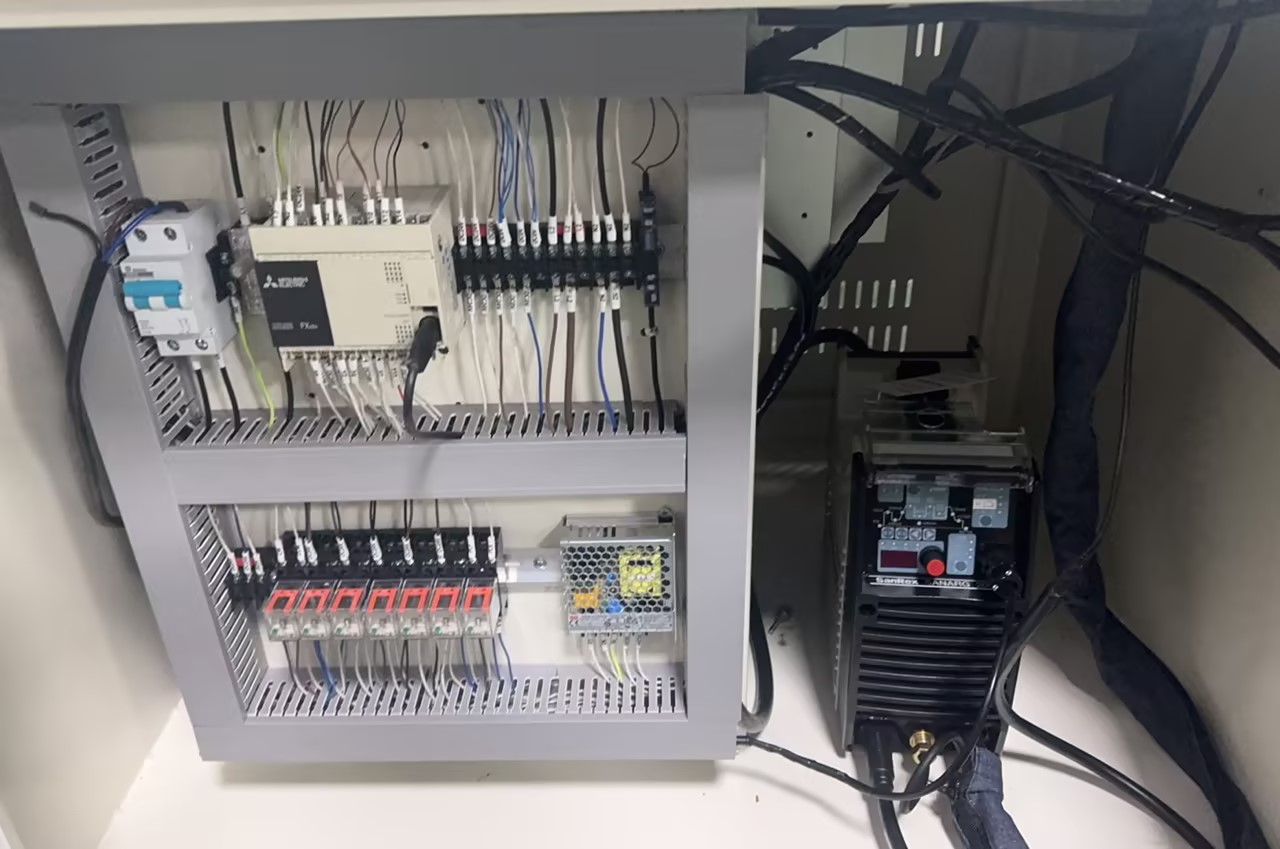

6. The control system is a combination of Mitsubishi (Japan) and Weintek (Taiwan).
