Copper Capillary Tube Cutting Machine

Copper Capillary Tube Cutting Machine works for copper capillary tubes with outer diameters from 1.5mm to 3.81mm. Tube straightness is ±2mm per meter. It handles coiled copper tubes of TP1/2 or equivalent standard products.

Applications

• Air conditioners

• Water heaters

• Airplanes and automobiles

• HVAC systems and industrial refrigeration

Key Features

• Continuous and stable feeding using belt pushing and servo motor driving

• Cuts tubes to set lengths accurately

• Inline forming options: tube end beading, bulging, flattening, or expanding

• Dual-station cutting for processing two tubes simultaneously, improving efficiency

• Chipless cutting: burr-free, crack-free, and no profile changes

• Works with copper and aluminum tubes from coils

• Ideal for heat exchanger coils: air conditioners, water heaters, automotive condensers/evaporators, plumbing, and refrigeration

Machine Components

• Uncoiling unit: loads coiled tubes and unwinds them smoothly

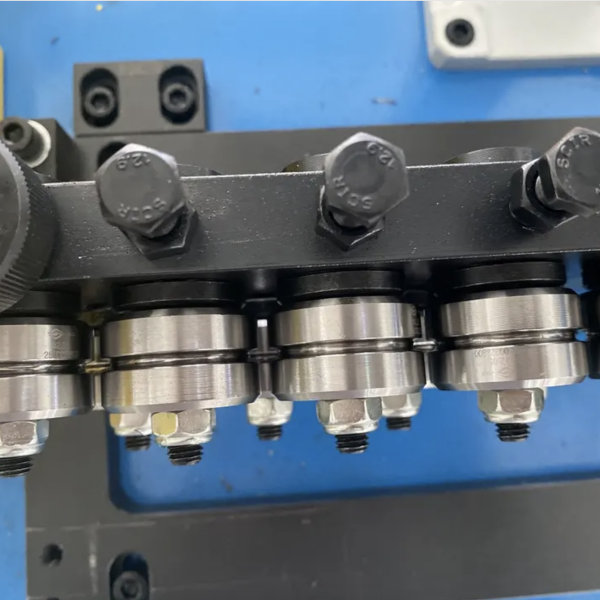

• Straightening rollers: two sets in horizontal and vertical directions for straight, rounded tubes

  • Made from Cr12Mov hardened steel for durability

  • Multi-radius rollers ensure good tube roundness

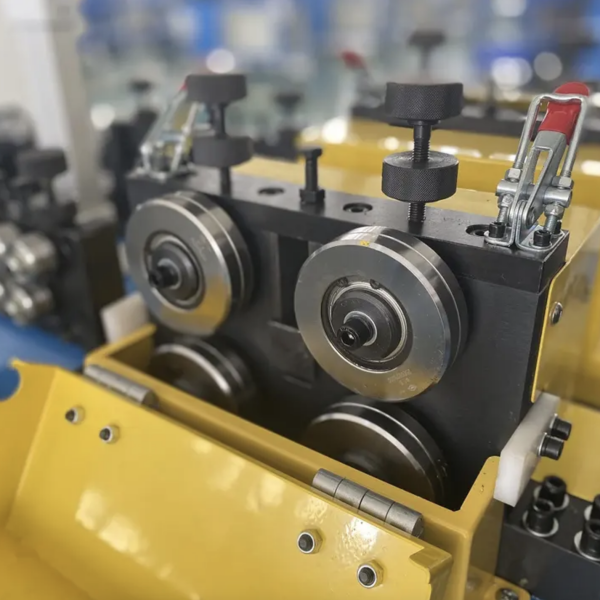

• Traction system: pulls tubes through straightening rollers

  • Servo motor-driven for stable, precise operation

Copper Capillary Tube Cutting Machine ensures high production efficiency, precise length, and excellent tube quality, making it essential for HVAC, automotive, and industrial applications.
