Servo Feeding & Pneumatic Molding
The machine uses servo feeding technology for precise and controlled tube movement during drilling. The pneumatic molding system accurately shapes the collar holes efficiently.
PLC Programming & Easy Operation
Equipped with a PLC (Programmable Logic Controller), the machine allows automated control of the drilling process. Operators can set up and operate the machine with minimal manual intervention.
One-Time Forming & Higher Efficiency
Drilling and hole-forming are completed in a single operation, reducing production time and improving overall efficiency.
Holes Distance Control
The tube moving system ensures precise spacing between holes. This guarantees accurate and consistent results.

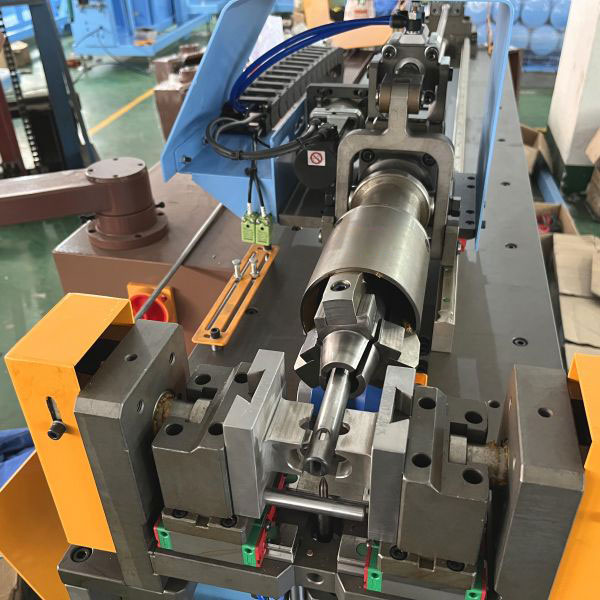

Precision Positioning System
Guide rails, ball screws, and servo motors work together to position the three-jaw clamped copper tube accurately for drilling.

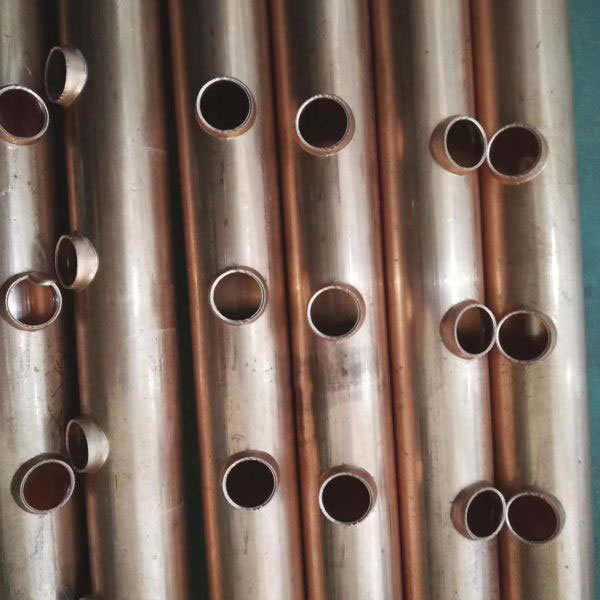

Collar Holes Punching Mechanism
Collar holes are formed using a punching cylinder and die assembly, which includes a guide sleeve, push-pull rod, and punch.
Cylinder Boosting Mechanism
A cylinder boosting mechanism holds the copper tube securely during drilling, preventing unwanted movement.
Flange Capability
By changing tooling, the machine can produce collar holes with flanges, making it versatile for different pipe designs.
Applications
Widely used in the air conditioner and solar water heater industries, the machine efficiently manufactures header pipes or manifold tubes, with or without flanges.
