Corrugated Hose Machine

This Machine Is Specially For Producing Deep Corrugated Pipes / Tubes / Hoses For Various Purpose. This Series Of Forming Machines Uses a Digital Control System Instead Of Traditional Travel Switch Control, Which Is Simpler To Operate, More Convenient To Adjust, And More Stable In Size.

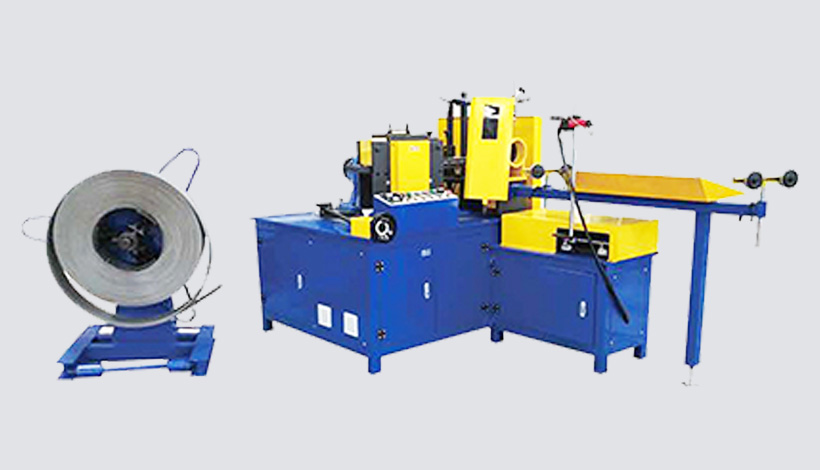

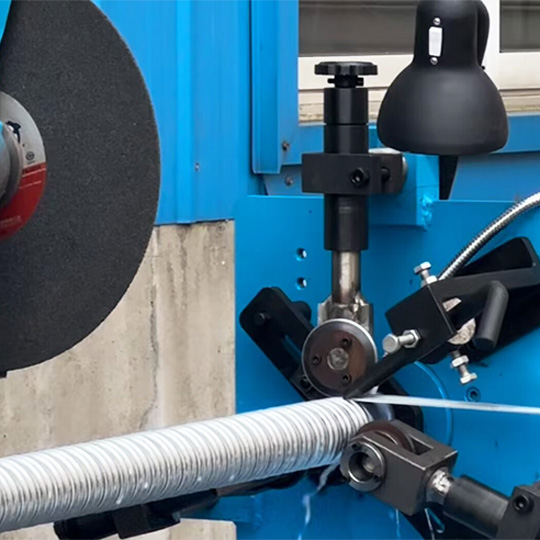

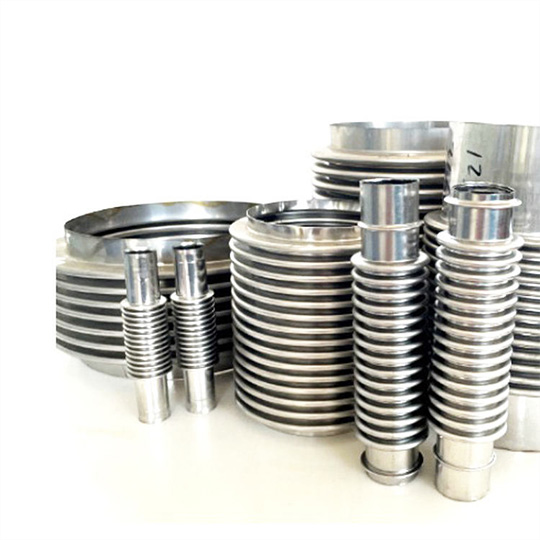

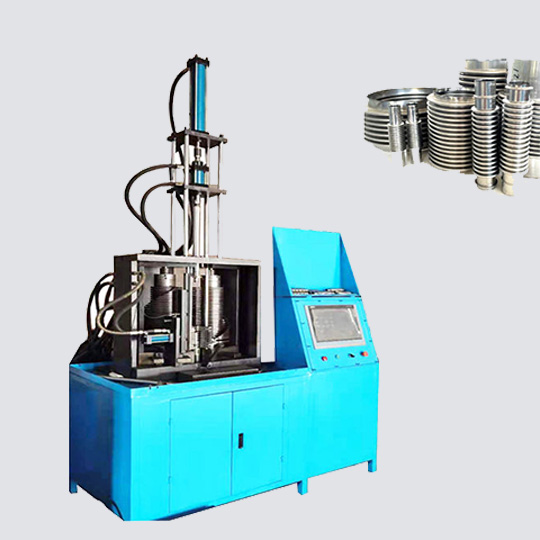

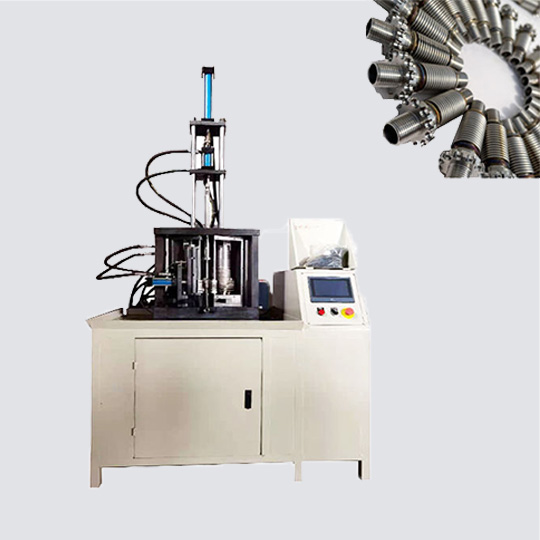

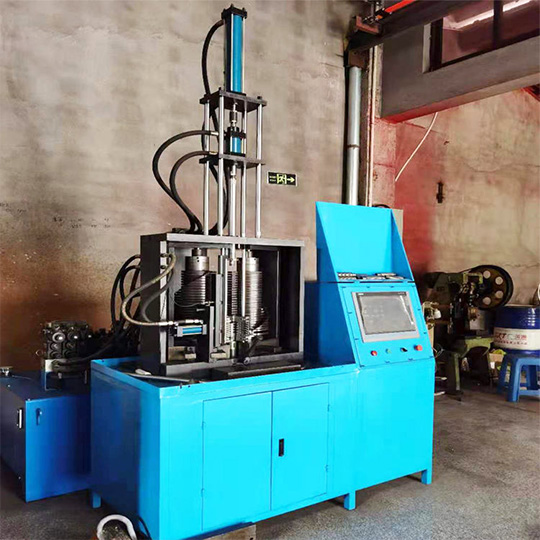

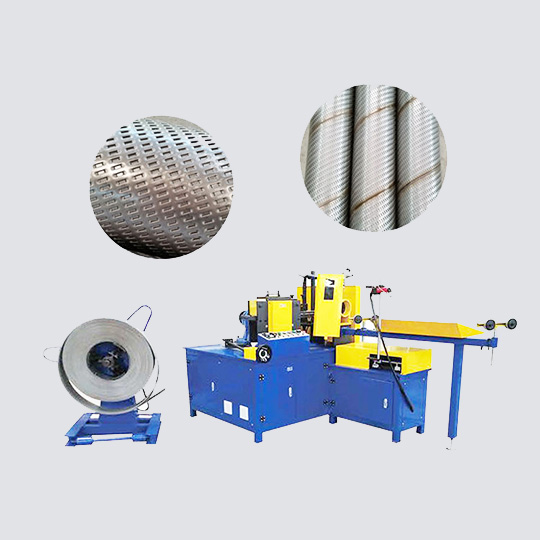

Model: Bellow Pipe Forming Machine

Corrugated Hose Machine

• Plc Control, Easy To Operate
• Compact Structure, Fast Speed, Low Power Consumption
• By Changing The Mold, Pipes Of Different Specifications Can Be Produced.
• The Finished Pipe Can Withstand 50mm Tensile Deformation And Can Withstand 5000 Stretching Times In Life.
• The Machine Is Equipped With Safety Protection Devices.
• The Machine Is Equipped With Basic Detection Devices



What Is Corrugated Hose Machine?

The Mechanical Bulging Die Is Assembled From The Pressure Cone, The Die Plate, The Inner Support Barrel, The Support Plate, The Return Spring And The Base Support Barrel. Under The Natural State, Under The Support Of The Return Spring, The Pressure Cone Is In The Lifting State, And The Mold Half Is Reset And Contracted. When Forming, The Vertical Downward Force F Acting On The Upper Plane Of The Pressure Cone Forms a Horizontal Component Force Through The Matching Inclined Plane Of The Pressure Cone And The Die Segment, Which Acts On The Bellows Barrel Blank, So That The Tube Blank Forms a Bulge Along The Outer Shape Of The Die Segment. , Thus Forming Ripples.



Main Axis Push Power	66t
Max Expansion And Shrinkage Stroke	45
Effective Length Of Expanded Pipe Fittings	650
Air Pressure	0.5-0.8Mpa
Bulging Blank Diameter(Mm)	150-600
Maximum Expansion Material Thickness	2.0mm
Motor Power	7.5kw
Core Expansion Stroke	200mm



More Product Model

• Stainless Steel Corrugated Pipe Making Machine
• Corrugated Pipe Extrude Machine
• Metal Corrugated Pipe
• Corrugated Pipe Machine
• Bellows Forming Machine
• Metal Bellows Forming Machine



Product Advantage

• High Production Efficiency
• Capable Of Producing 100-300 Meters Of Pipe Per Hour, Enabling Large-Scale Manufacturing With Minimal Downtime.



• Material Versatility
• Processes a Wide Range Of Materials, Including HDPE, PVC, Pp, And Metal (Steel/Aluminum), Making It Suitable For Different Industries



• Precision Corrugation
• Advanced CNC Controlled Molding Systems Ensure Uniform Wave Patterns, Improving Pipe Flexibility And Structural Integrity.



• Energy Efficiency
• Optimized Motor Systems And Heat Control Reduce Power Consumption, With Some Machines Operating At < 5 Kw While Maintaining High Output.



• Durability & Low Maintenance
• Hardened Steel Molds And Corrosion-Resistant Components Extend Machine Lifespan, Requiring Minimal Servicing Even In High-Volume Production.



• Customize Pipe Designs
• Adjustable Dies Allow For Single-Wall, Double-Wall, Or Multi-Layer Corrugation, Catering To Specific Strength And Flexibility Requirements.



• Cost-Effectiveness
• High-Speed Production Reduces Labor Costs, While Precision Cutting Minimizes Material Waste, Lowering Overall Manufacturing Expenses.



• Automation & Smart Controls
• Lot-Enabled Monitoring And Automated Quality Checks Ensure Consistent Pipe Dimensions, Reducing Defects And Improving Yield Rates.



Product Application

• Drainage & Sewage Systems
• Electrical Conduits
• Gas & Water Supply Pipes
• Automotive & Aerospace
• Mining & Industrial Ventilation
• Renewable Energy Infrastructure
