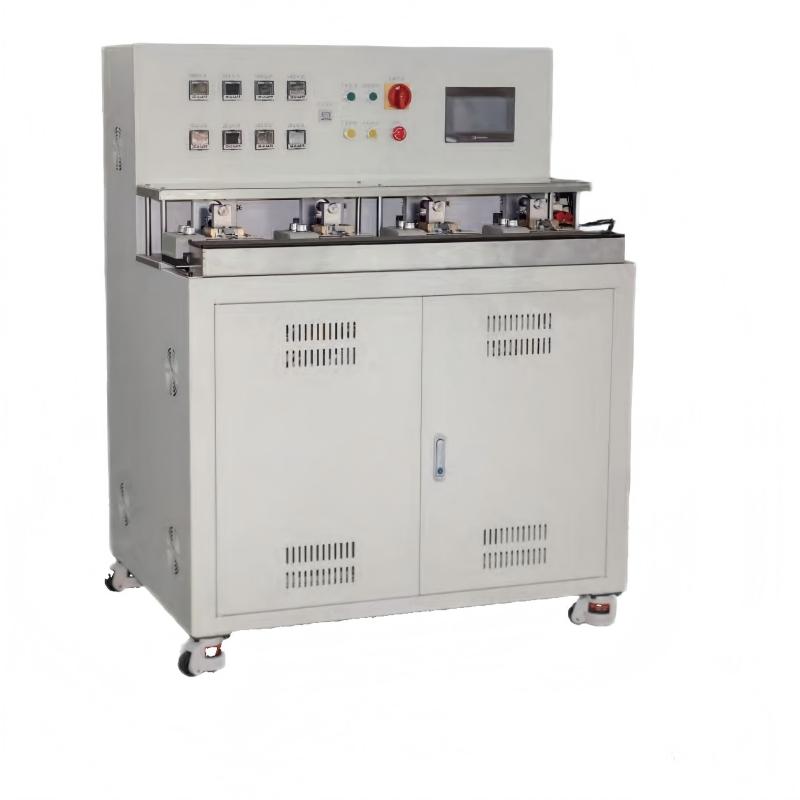

Four-station length fixing machine

A Four-Station Length Fixing Machine is specialized equipment used in the finned tube production line to accurately control and fix the tube length at multiple stages. It ensures high precision, uniformity, and efficiency during manufacturing, which is critical for downstream processes like finning, welding, or assembly.



Equipment Application

Used for fixed-length heat pipes in radiators



Equipment Specifications

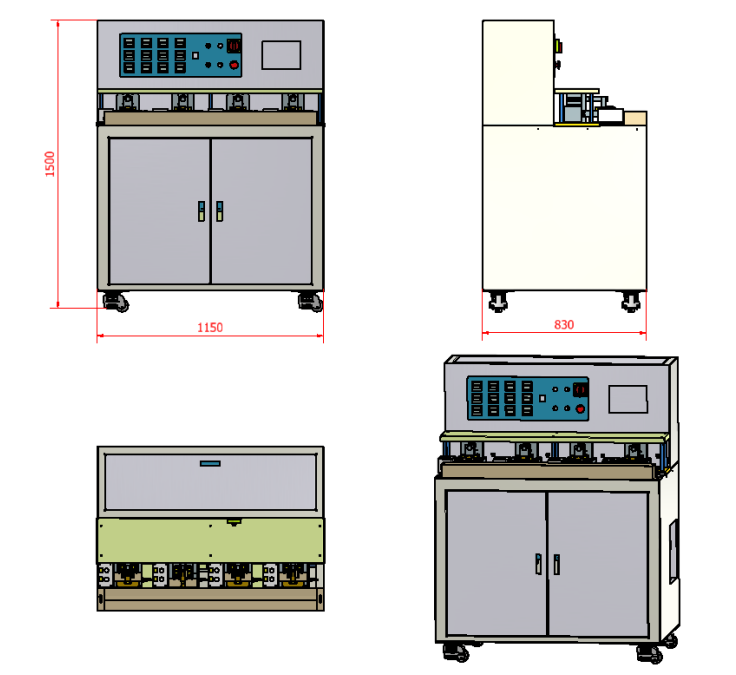

1. External Dimensions: 1150mm*W 850mm*H 1500mm
2. Power Configuration: 380V Three-phase Five-wire 5KW
3. Processing Diameter: ￠4-￠10
4. Processing Wall Thickness: 0.15mm – 0.3mm
5. Processing Length: 80mm-450mm
6. Equipment Capacity: Approximately 5K units/shift
7. Sealing Method: U-shaped
8. Consumable Material: U-shaped mold

Equipment Operation Instructions

After powering on the equipment, turn on the power button → turn on the hydraulic switch → set the temperature parameters → set the heating time → manually insert the product → press the start button → sealing mechanism seals and cuts → manual material collection → operation cycle



Equipment Composition:

1. The equipment consists of a heating system, a hydraulic system, a sealing mechanism, and a control system.
2. The temperature controller uses a Taiwan Delta brand, ensuring accurate and stable temperature.
3. The product positioning part uses a slot-type design for directional positioning, and the bottom uses a spring buffer mechanism to prevent the product from stretching during sealing, causing poor appearance.
4. The control system is a Huichuan series.
