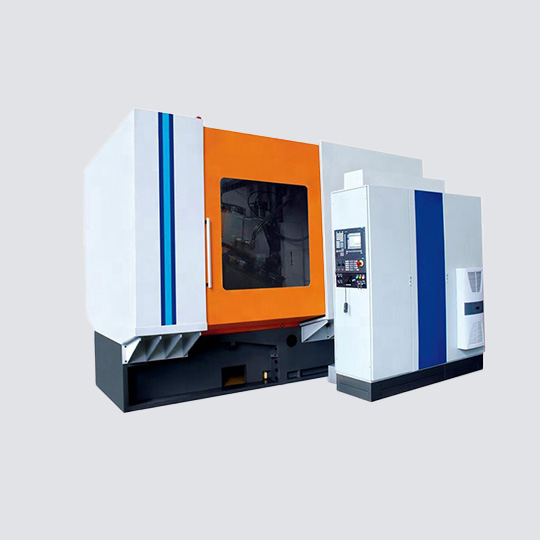

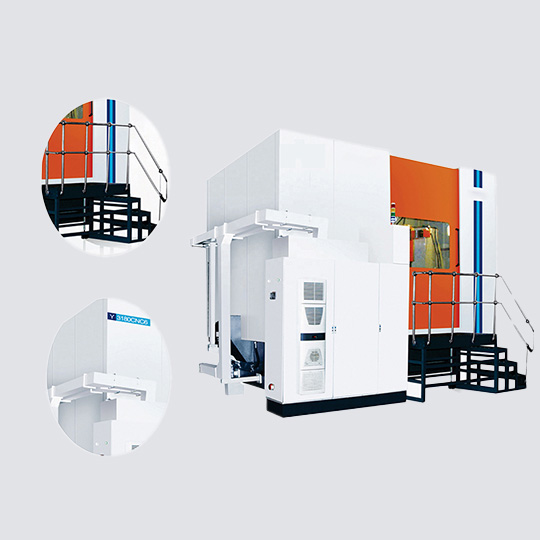

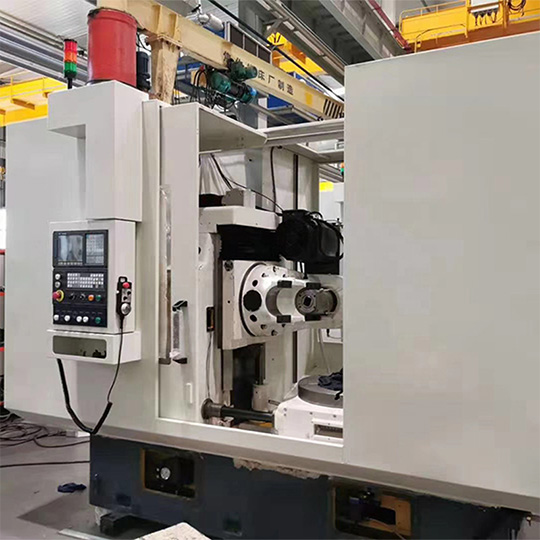

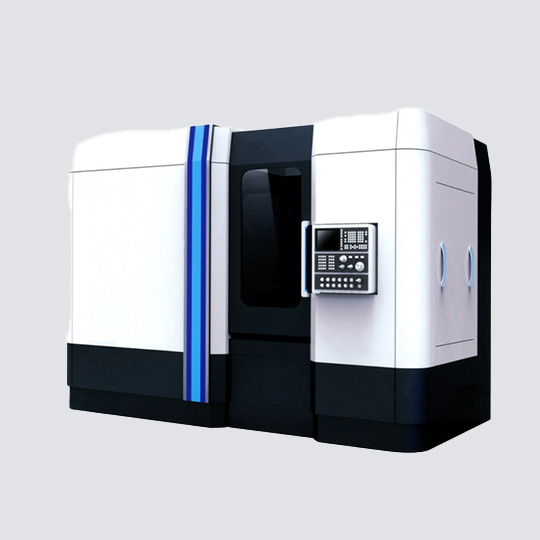

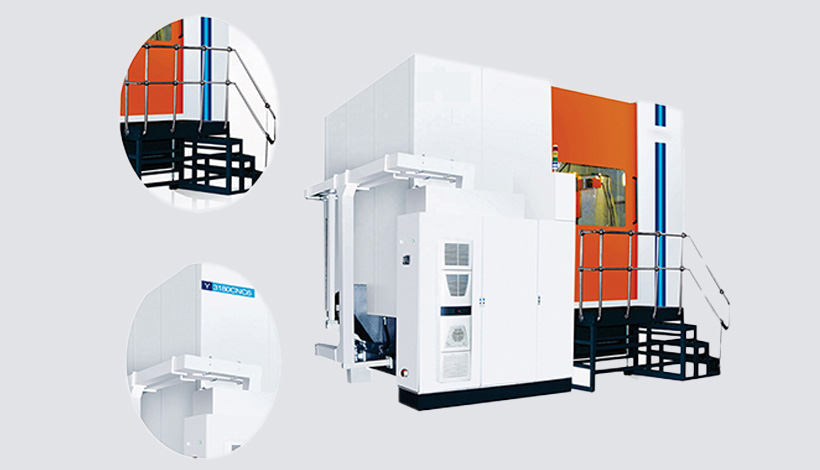

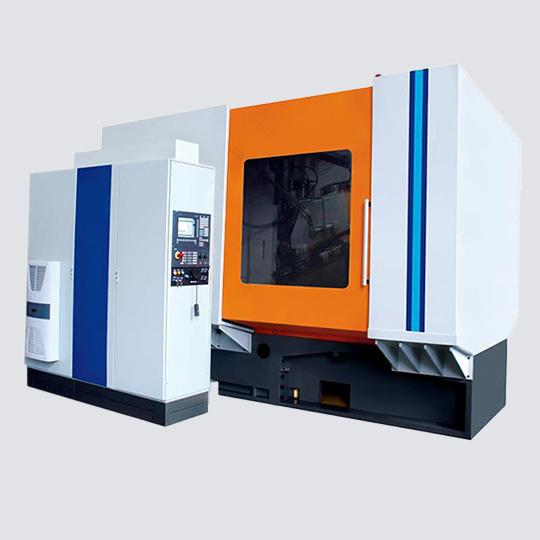

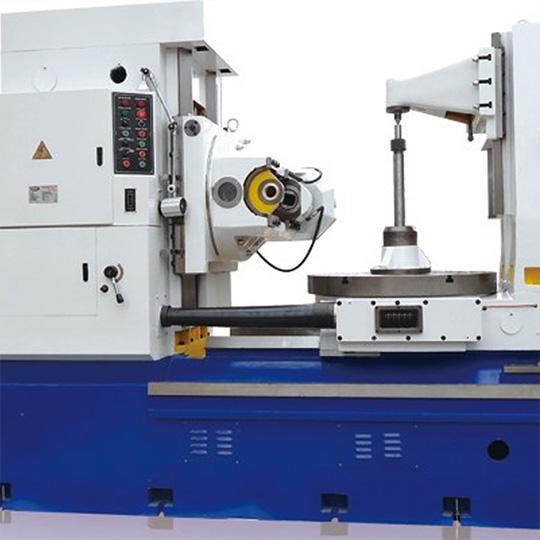

Gear Hobbing Machine
Gear Hobbing Machine Is Suitable For Large Batch, Small Batch And Single Production Of Cylindrical Spur,Helical Gears, Worm Wheel And Chain Wheel Etc!With The Process Method Of Continuous Cent.
Gear Hobbing Machine
- Good Rigidity And High Strength
- High Precision
- Easy To Operate, Adjust And Maintain
- Wide Production And Processing Range
- Large Modulus
What Is Gear Hobbing Machine?
Gear Hobbing Machine Is a Specialized Industrial Tool Used To Manufacture Gears Through The Gear Hobbing Process. This Method Is Very Effective For Mass Production Of Precision Gears.
| Maximum Workpiece Diameter | 500 | Mm |
| Maximum Modulus | 12 | Mm |
| Helical Angle Of Machined Helical Gear | ±45 | ° |
| Maximum Diameter Of Installed Hobbing Cutter | 160 | Mm |
| Maximum Length Of Installed Hobbing Cutter | 160 | Mm |
| Maximum Axial Movement Of Hobbing Cutter | 100 | Mm |
| Replaceable Mandrel Diameter Hobbing Cutter | 22 27 32 40 | Mm |
| Horizontal Distance From t Center Of Hobbing Cutter To Center Of Worktable | 25-330 | Mm |
| Vertical Distance From Center Of Hobbing Cutter To Surface Of Worktable | 235-535 | Mm |
| Distance From Rear Column Center To Worktable Surface | 900 | Mm |
| Diameter Of Worktable Surface | 510 | Mm |
| Maximum Speed Of Hobbing Cutter Spindle | 625 | Rpm |
| Axial Feeding Speed Range (Z- Axis) | 0-2000 | Mm/Min |
| Radial Feeding Speed Range (X-Axis) | 0-2000 | Mm/Min |
| Maximum Tangential Motion Speed | 2000 | Mm/Min |
| Maximum Speed Range Of Worktable | 30 | Rpm |
| Maximum Rotating Speed Of Tool Post | 4.5 | o/s |
| Machine Volume (L x W x H) | 2.97×1.80×2.15 | m |
| Net Weight Of Machine | 5500 | Kg |
More Product Model
Cnc Gear Hobbing Machine
Product Advantage
- High Precision
- Gear Hobbing Machines Ensure Excellent Accuracy Of Gear Tooth Profiles
- High Efficiency
- Continuous Cutting Motion And Synchronous Rotation Between Hob And Workpiece Enable Fast Production
- Versatility
- Capable Of Producing Various Types And Sizes Of Gears
- Material Adaptability
- Compatible With a Wide Range Of Materials Steel, Aluminum, Brass And Composites
- Excellent Surface Finish
- Provides Smooth Gear Surfaces By Directly From Machining
- Long Tool Life
- Advanced Cooling System And Hardened Hob Tools Extend Tool Life
- Automation Compatibility
- Easy Integration With Cnc Systems And Robotic Arms For Unmanned Operation
- Cost-Effectiveness
- High Output And Low Unit Production Cost Enable Economical Mass Production While Maintaining Quality
Product Application
- Automotive Transmissions
- Industrial Machinery
- Aerospace Components
- Wind Turbine Gearboxes
- Agricultural Equipment
- Medical Devices
