High Speed Wire Straightening And Cutting Machine

The machine works for wire or rod straightening and cutting, the cutting wire diameter is 0.2 to 8.5 mm by different models. The straightening wheels (rollers) driven by motor,a special swage rotary process offers great straightness of wires.Cutting blade speed is adjustable with inverter control.Cutting length accuracy with tolerance ±0.1mm on 1 meter long. Great cutting performance up to 150m/min.

Φ0.2~1.0mm Φ1.0~3.5mm Φ3.0~6.5mm Φ4.5~8.5mm
3~15m/min 6~30m/min 9~35m/min 15~40m/min
±0.1mm ±0.1mm ±0.1mm ±0.1mm
Automatic/Manual
2kw 2.8kw 3.3kw 4.0kw
380v/50~60Hz or free customize
1660×910×1330mm 1630×910×1330mm 1950×910×1330mm 2330×910×1330mm
260KG 330KG 450KG 500KG
50KG 100KG 150KG 200KG
1.5m or customize

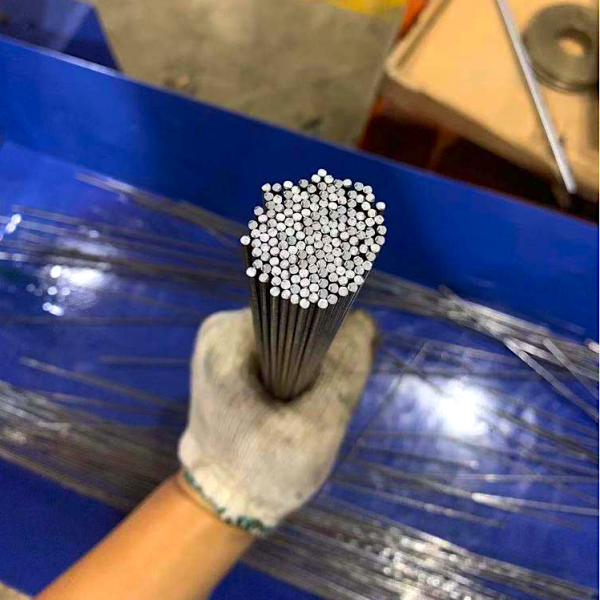

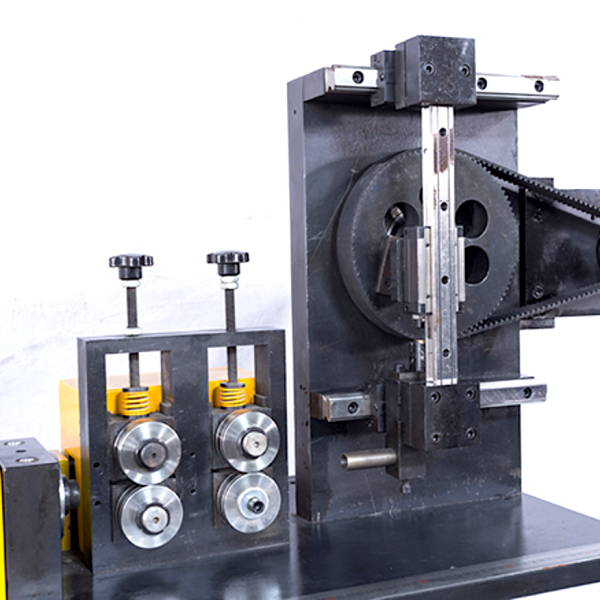

The wire feeds through straightening rollers and swage spinner starting from a wire coil to the wire straightening & cutting Machine.The wire to be straighten while it passing though roller groups.These wire cutting machine adopts a special cam cutting mechanism.It is easier to adjust the wire cutting length while offers stable and accurate wire cutting performance. Furthermore,wire cut to length with the clean burr-free surfaces.
