Hydraulic Mandrel Pipe Bending Machine

Machine Overview

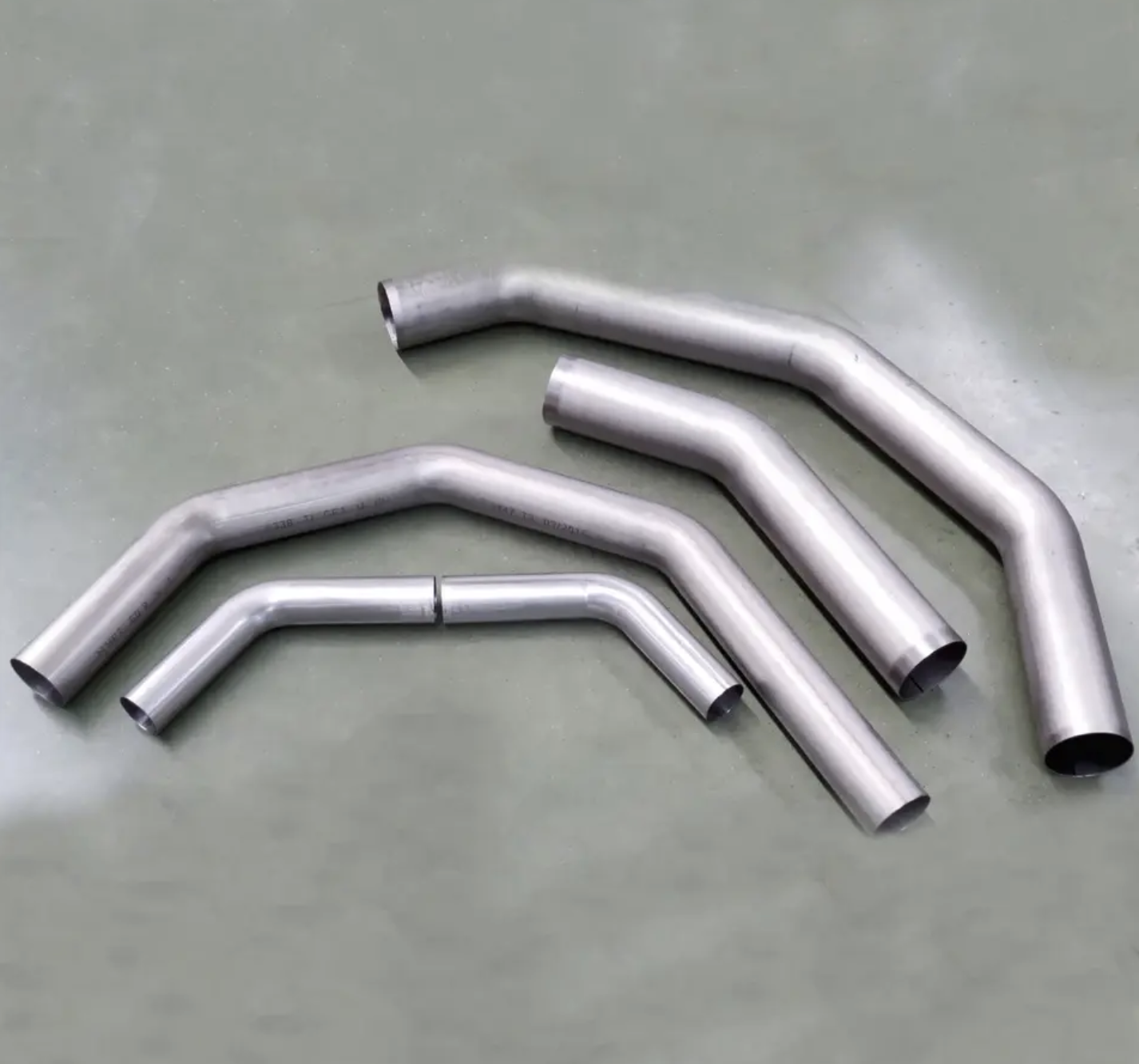

The hydraulic mandrel pipe bending machine is designed for precise bending of metal pipes and tubes. It ensures smooth bends without wrinkles, collapsing, or deformation.

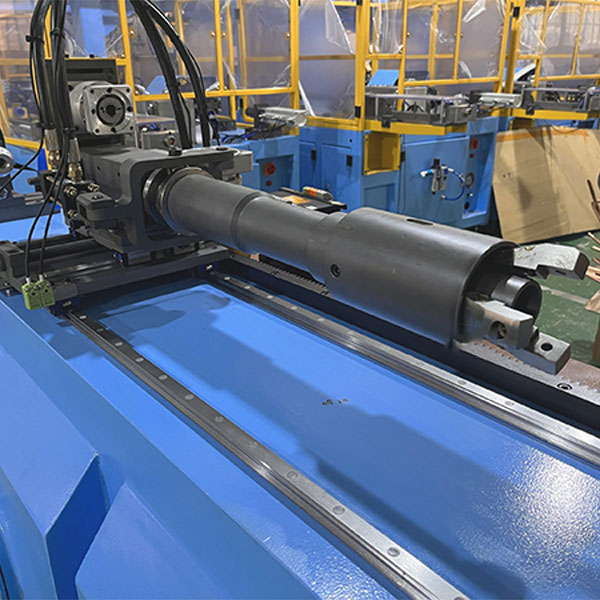

Mandrel Bending System

The hydraulic mandrel pipe bending machine uses a hydraulic mandrel to support the inner tube during bending. This guarantees consistent bending radius and maintains pipe roundness.

Wide Application Range

Suitable for copper, aluminum, stainless steel, and other metal tubes used in:

• Heat exchangers

• HVAC systems

• Automotive and industrial pipelines

The NC program controls the bend angle (Y axis) and rotation (Z axis). The distance between elbows (X-axis) is configured using easily adjustable and precise mechanical stops.

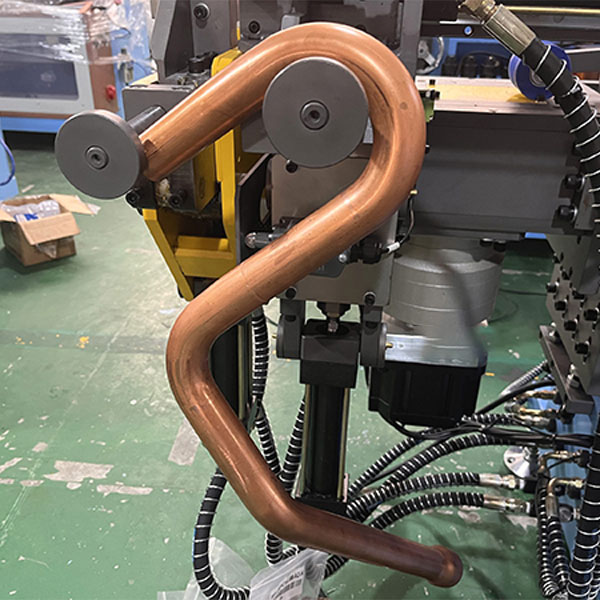

The clamping die with Toggle mechanism,the pressure die and bending Y-axis powered by hydraulic cylinder.All slides guided on screw linear rod.It works for copper pipes,alumium tubes,steel pipes,stainless steel pipes.

Feature

• lImported NC control system special for refrigeration and air conditioning pipeline work.
• lMulti-set servo systems ensure high precision feeding, rotating, and bending in process.
• lTouch screen control with easy settings for X, Y , and Z axis positions for each step.
• lAutomatic alarm system for each axis and automatic indication for fault unit.
• lAll pipe bending tools adopt quick changing designs for fast set-up without re-positioning.
• lThe minimum ovality even on small radius-to-diameter ratios achieved by experienced bending tools design, high precision machining manufacture, assembly skills, and advanced program control.
• lAn integral memory system can save 100 programs, easier operation, and maintenance.
• lRemote control with emergency stop button for convenient and safe operation.
• lOptimum design machine frame with compact structure and friendly appearance.
