Applicable Type: Conventional heat pipe
Workstations: 8 stations

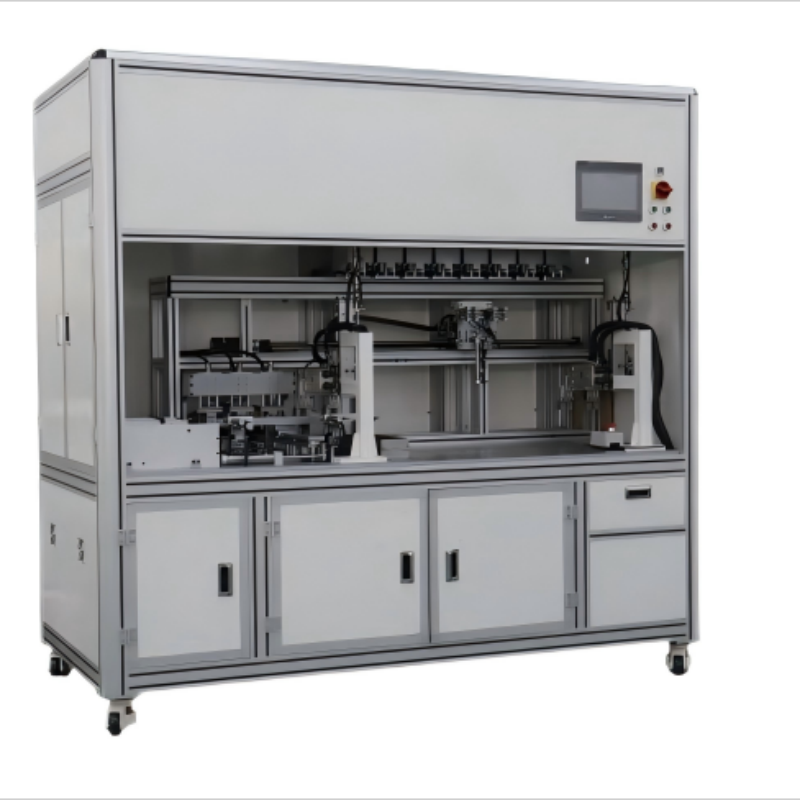

Equipment Application: For heat pipe water injection and vacuum degassing
Dimensions: 2200*1100*2400MM
Power Configuration: 380V three-phase 7.5KW
Processing Length: 150-450MM
Equipment Capacity: Depends on product characteristics
Vacuum Pump Configuration: 8 Edwards E2M40 pumps, maximum pumping speed 40 cubic meters/hour.
Water Injection Valve: EFD (USA)
Vacuum Pipe: Riyang (Taiwan)
Control System: Mitsubishi PLC (Japan) + Weintek Touch Screen
Processed Product Specifications: D5, D6, D8
