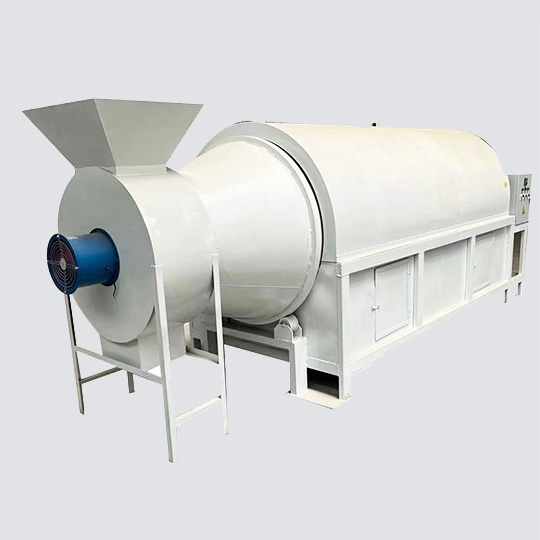

Rotary Dryer

Rotary Dryer

At The Bottom Of The Dryer, Large Wet Particles Are Mechanically Crushed, And Small Particles With Low Moisture Content Flow Upward With The Rotating Airflow. During The Upward Process, The Material Is Deeply Dried.



What Is Rotary Dryer?

The Rotary Flash Dryer Is a New Type Of High-Efficiency Fluidized Bed Drying Equipment Developed To Overcome The Low Efficiency And High Energy Consumption Of Static Drying. It Combines The Advantages Of Ordinary Fluidized Bed Drying Such As Airflow Drying, Has a Reasonable Design Structure, Excellent Performance, And Achieves The Goal Of High Efficiency And Low Energy Consumption.



Barrel Diameter(Mm)	Main Machine Dimensions(m m)	Main Machine Power(Kw)	Treatment Wind Capacity(m3/h)	Water Evaporation Quantity(Kg/h)
200	250×2800	5-9	300-800	10-20
300	400×3300	8-15	600-1500	20-50
400	500×3500	10-17.5	1250-2500	25-70
500	600×4000	12-24	1500-4000	30-100
600	700×4200	20-29	2500-5000	40-200
800	900×4600	24-35	3000-8000	60-600
1000	1100×5000	40-62	5000-12500	100-1000
1200	1300×5200	50-89	10000-20000	150-1300
1400	1500×5400	60-105	14000-27000	200-1600
1600	1700×6000	70-135	18700-36000	250-2000

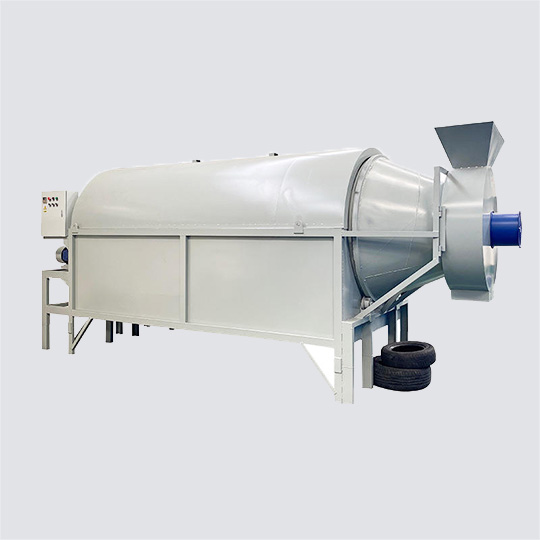

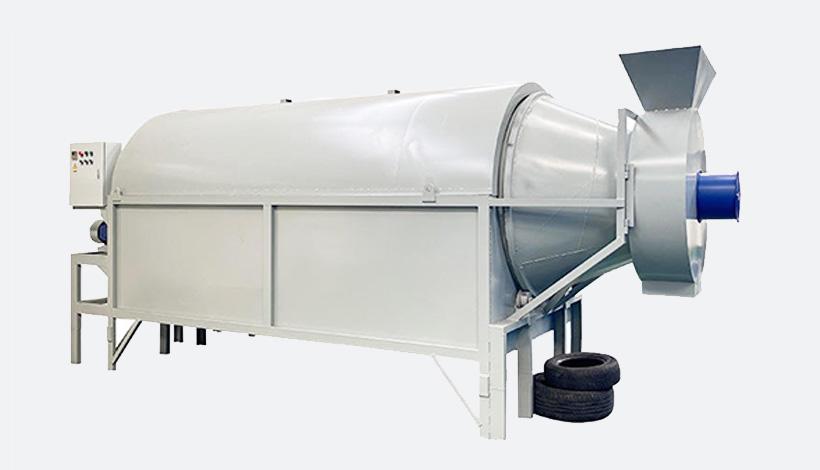

Rotary Dryer

• Feeding Is Continuous And Stable
• Cooling Device Is Installed At The Bottom Of The Dryer
• Swirl Plate And Grading Wheel Are Installed In The Drying Chamber



More Product Model

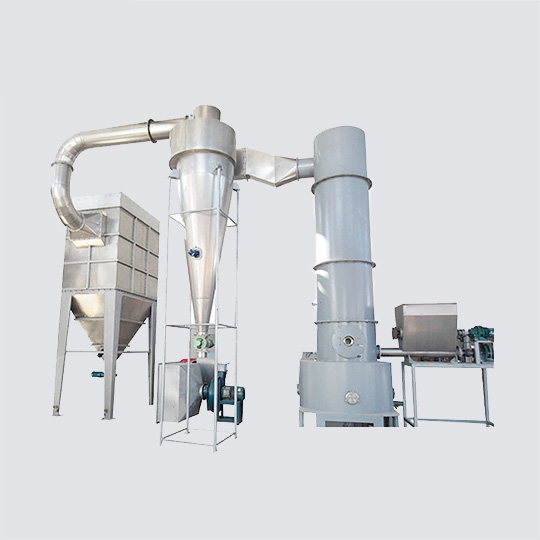

Rotary Flash Dryer



Product Advantage

• Efficient
• Due To The Large Surface Area And Continuous Tumbling, The Rotary Dryer Has Excellent Heat Transfer And Drying Efficiency



• Versatility
• Can Handle a Wide Range Of Materials, Including Powders, Granules, Sludge And Pastes



• Large Capacity
• Designed For Continuous Operation, The Rotary Dryer Can Handle Large Amounts Of Material



• Rugged Construction
• Made Of Durable Materials To Withstand Harsh Conditions



• Customizable Design
• Parameters Such As Drum Size, Heating Method And Airflow Can Be Adjusted To Meet Specific Drying Requirements



• Energy Saving Options
• Heat Recovery System And Optimized Airflow Reduce Energy Consumption



• Low Maintenance
• Simple Design With Fewer Moving Parts Minimizes Wear And Tear



• Uniform Drying
• The Rotating Action Ensures Continuous Heat, Preventing Uneven Drying Or Material Clumping



Product Application

• Minerals & Mining
• Agriculture
• Chemical Industry
• Waste Management
• Food Processing
• Biomass & Biofuels
