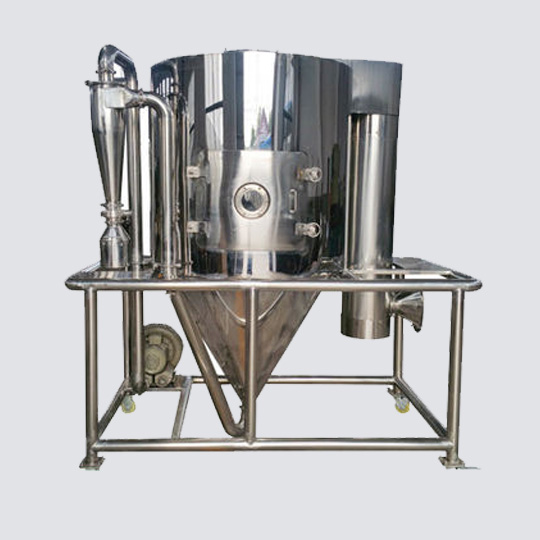

Spray Dryer

Spray Dryer

Spray Dryer Can Be Steam Or Electric Heater, Which Has The Characteristics Of Easy Operation, Quick Start, Compact Structure, Clean Hot Air, Etc. The Electric Control Cabinet Is Equipped With An Electric Heater Control And Adjustment Device, Which Can Steplessly Adjust The Inlet Air Temperature. Steam, Coal Or Oil Can Be Used In Places Without Electricity, Which Can Partially Or Completely Replace Electric Heating.



What Is Spray Dryer?

Spray Dryer Is An Industrial Drying System That Converts Liquids Or Slurries Into Dry Powder Form In a Single Step. It Works By Atomizing The Feed Into Fine Droplets, Which Are Then Rapidly Dried With Hot Air To Produce Free-Flowing Particles With a Controlled Moisture Content.



Evaporated Amount(Kg/h)		25	50	100	150	200	300	500	The Index Can Be Affirmed In Accordance With Practical Conditions.
Diaphragm Pump	Power(Kw)	0.35	4	7.5	11	15	22	30
	Pressure(Mpa)	It Can Be Regulated From 0.6 To 5,In General,It Will Be From 1 To 3.
Heating Way		Electricity	Electricity+Steam		Electricity+Coal Fuel(Oil)Hot Air Furnace
Diameter Of Tower Body(Mm)		1300	1800	2400	2600	2800	3200	3800
Total Height Of Equipment(Mm)		7800	9200	11600	4000	5300	17100	19000



Spray Dryer

• Fast Drying Speed, The Surface Area Of ​​The Liquid Raw Material Is Greatly Increased After Atomization, And 95-98% Of The Water Can Be Evaporated Instantly, And The Drying Time Takes About Ten To Dozens Of Seconds
• The Finished Product Is Spherical Particles With Uniform Size, Good Fluidity, Good Solubility, High Product Purity And Good Quality.



More Product Model

Pressure Spray Granulation Dryer

High Tower Spray Dryer



Product Advantage

• Fast Drying Process
• Spray Dryers Achieve Rapid Dehumidification By Atomizing Liquid Feed Into Fine Droplets Exposed To Hot Air



• Various Product Forms
• They Can Process Liquids, Slurries Or Suspensions Into Powders, Granules Or Agglomerates



• Preservation Of Heat-Sensitive Ingredients
• Rapid Evaporation Instantly Cools Droplets Despite High Inlet Air Temperatures



• High Solubility And Uniform Particle Size
• Produces Free-Flowing Porous Particles With Controlled Size Distribution



• Continuous Operation
• Minimizes Downtime And Optimizes Yield For High-Volume Manufacturing



• Customized Particle Properties
• Adjustable Parameters Allow Precise Control Of Particle Size, Density And Morphology



• Energy Efficiency
• Modern Systems Integrate Heat Recovery Mechanisms, Reducing Energy Consumption And Operating Costs



• Minimized Product Losses
• Closed System Design Prevents Contamination



Product Application

• Food Industry
• Pharmaceuticals
• Chemical Industry
• Environmental Treatment
• Cosmetics
• Advanced Materials
