Tail-clamping welding integrated machine

I. Equipment Application

For welding the tail ends of heat pipes



II. Equipment Specifications

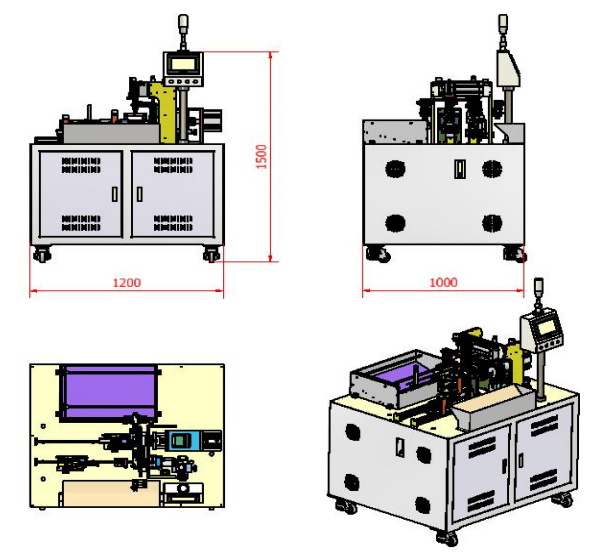

1. External Dimensions: L 1200mm * W 1000mm * H 1700mm

2. Power Configuration: 220V Single Phase 2.5KW

3. Machining Diameter: ￠4-￠10

4. Machining Length: 80mm-450mm

5. Equipment Capacity: Approximately 7 seconds/piece

6. Welding Type: Argon Arc Welding

7. Consumable Materials: Tungsten Rod, Graphite Wheel

III. Equipment Operation Instructions

After powering on the equipment, turn on the power button → Manually place the product into the hopper → Adjust the product length → Press the start button → Transfer cylinder moves the product → Cylinder positioning → Tail clamping fixture clamps the tail → Transfer cylinder moves the product → Cylinder positioning → Welding machine processes the product → Finished product removal → Manual collection → Operation cycle



IV. Equipment Functions

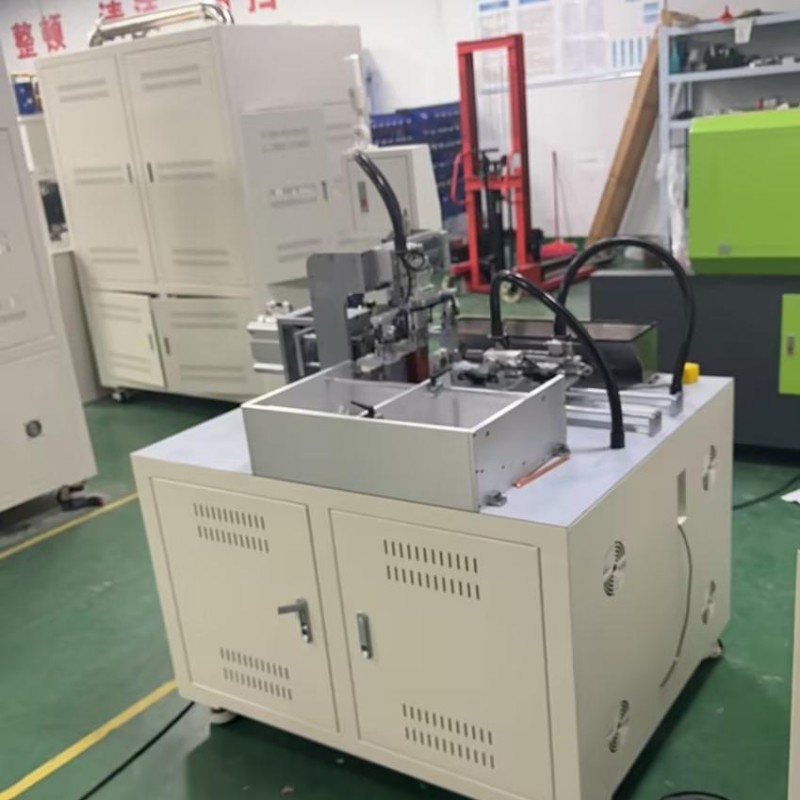

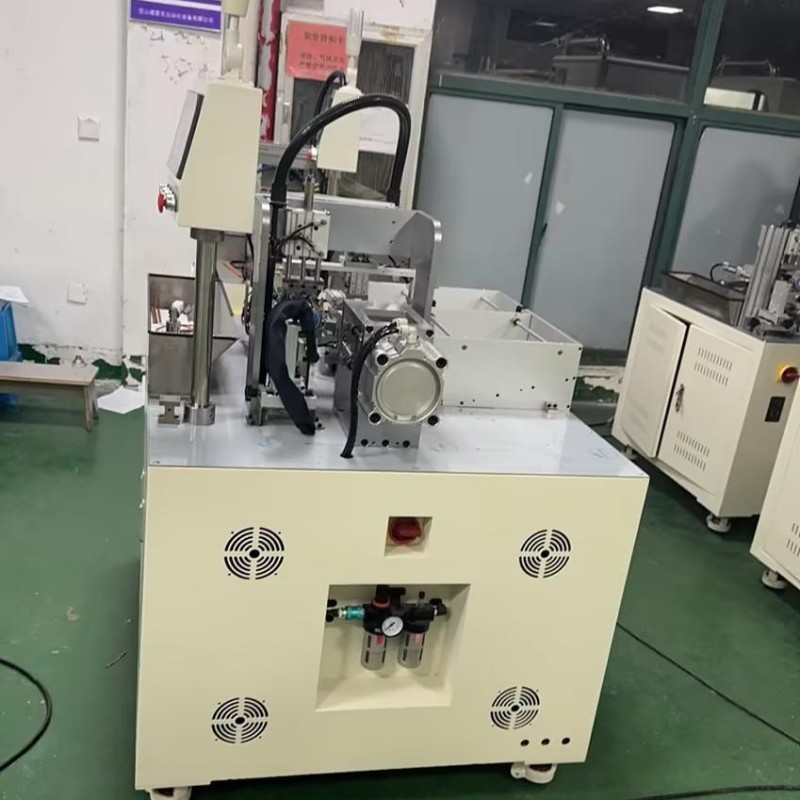

1. The equipment consists of a feeding mechanism, transfer mechanism, tail clamping mechanism, rotary welding motor, welding module, and control system.

2. The feeding mechanism uses a lifting hopper to avoid scratching during feeding and ensures high stability.

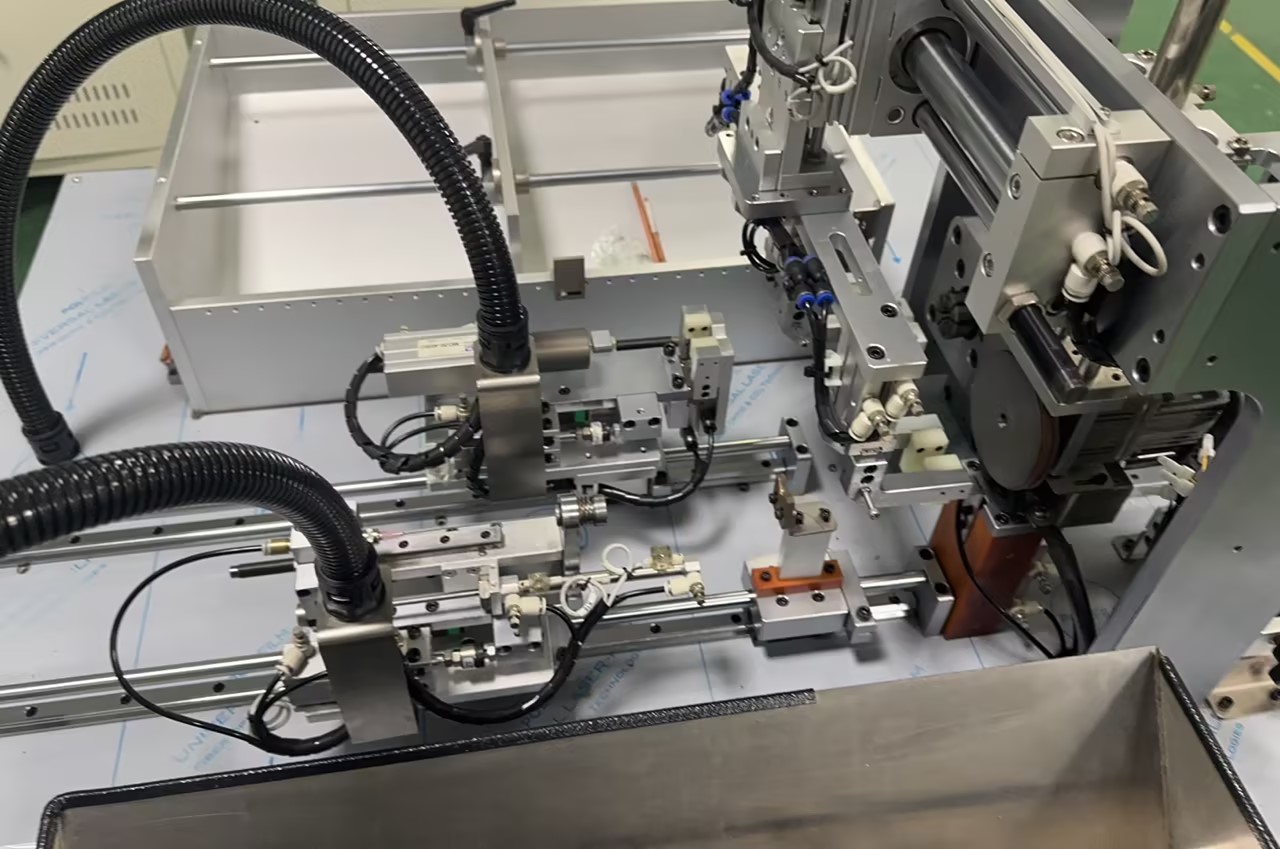

3. The transfer mechanism uses a rodless cylinder for transfer, ensuring stable and smooth transfer.

4. The rotary welding motor uses a Taiwan Dongli motor with a reducer, and the welding wheels are covered with silicone rings. This ensures no pressure damage to the product surface during high-speed rotation.

5. The welding part uses an imported welding machine to ensure a smooth and rounded weld surface.

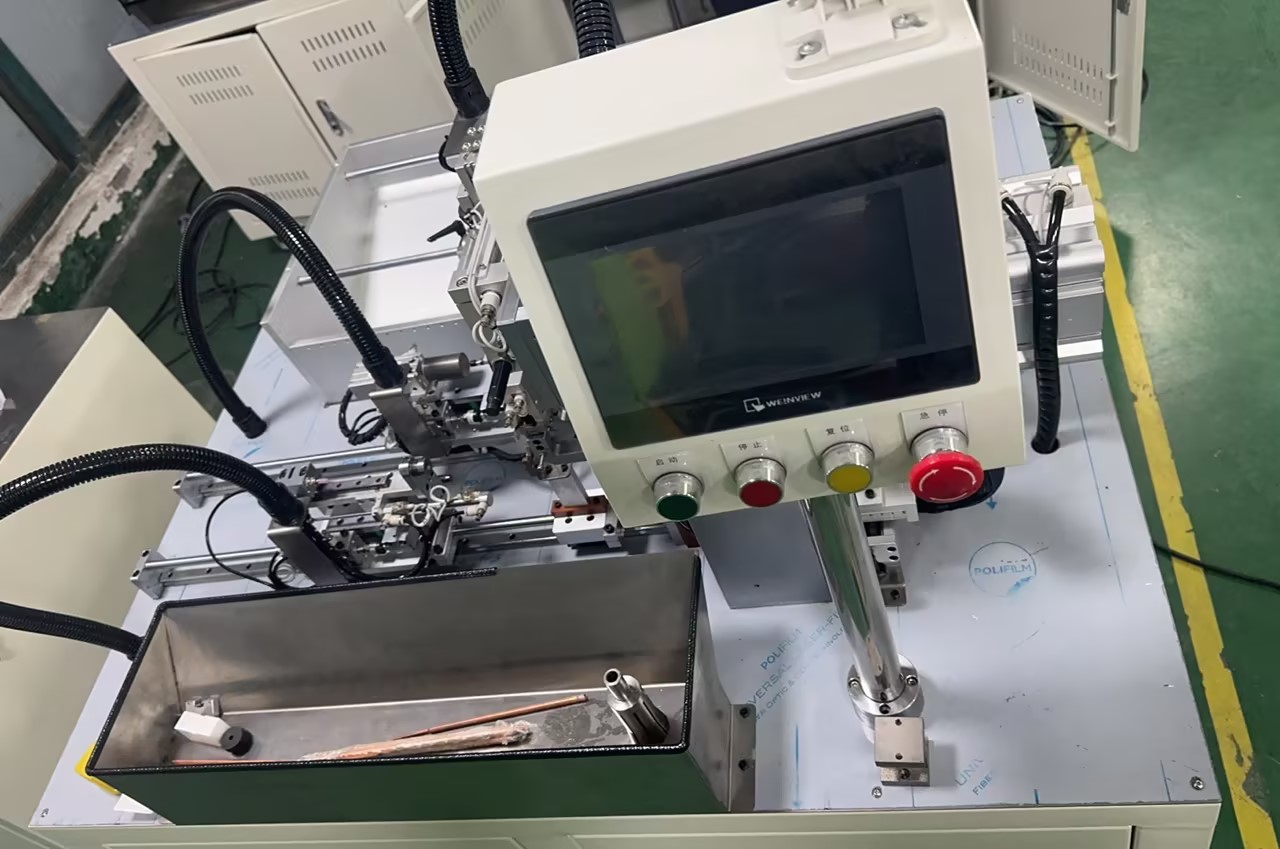

6. The control system is a combination of Mitsubishi (Japan) and Weintek (Taiwan).
