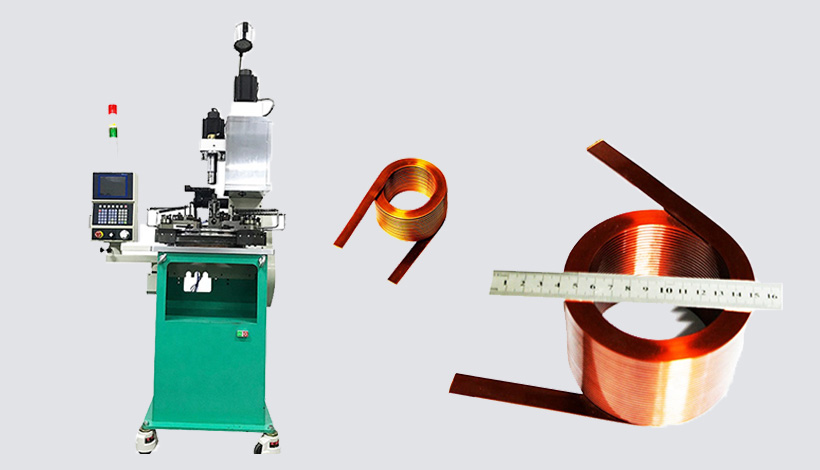

Wire Winding Machine
Wire Winding Machine Has a Compact Structure, High Winding Accuracy, Wide Processing Range And Easy Operation. It Can Adjust The Processing Range According To The Size Of The Core And The Skeleton. By Replacing Different Clamps, Various Casting Voltage Transformer Coils Can Be Wound. It Is An Essential Winding Equipment For The Production Of R-Shaped Closed Core Voltage Transformers
Model: 450-J
Wire Winding Machine
- Forward And Reverse Winding
- Power-Off Protection
- Wire Break Protection
- Parking Brake
- Winding Position Setting
- Positioning And Fault Prompts
What Is Wire Winding Machine?
The Winding Machine Is a High-Precision Winding Machine For Voltage Transformers Independently Developed By Our Factory According To The Process Requirements Of The Domestic Voltage Transformer Industry. The Characteristics Of This Machine Are: On The Processed R-Shaped Closed Core Of The Voltage Transformer, The Winding Skeleton Can Be Clamped With a Special Support Ring, And a Coil Can Be Directly Wound On The Skeleton. Improved The Comprehensive Electrical Performance Of The Transformer.
| Nominal Diameters Of Enameled Wire | ф 0.1~1.5mm |
| Max Rotation Diameter Of Coil | ф450mm |
| Min Rotation Diameter Of Coil | ф50mm |
| Max Winding Breadth | 400mm |
| Winding Rotation Speed Range | 1390 Rpm |
| Machine Tool Power | 1.5KW |
| Input Power Of Machine Tool | 220V±10% |
| Outline Size Of Machine Tool | 1500x600x1450mm |
More Product Model
- CNC Winding Machine For Voltage Transformer
- CNC Parallel Winding Machine For Voltage Transformer
- Secondary CNC Winding Machine For Voltage Transformer
- CNC Circular Winding Machine For Current Transformer
- Large-Sized CNC Circular Winding Machine
- Special Rectangular CNC Winding Machine
Product Advantage
- Short Transmission Chain
- The Machine Has a Simplified And Efficient Power Transmission System With Fewer Components, Reducing Energy Loss And Improving Responsiveness.
- Large Transmission Torque
- It Delivers High Torque Output, Ensuring Strong Winding Capability Even For Thick Or Heavy Materials.
- Wide Speed Range
- The Machine Operates At Adjustable Speeds, Accommodating Different Winding Requirements From Slow Precision Work To High-Speed Production.
- Low Noise
- Designed With Noise-Reducing Mechanisms, It Ensures Quiet Operation, Improving The Workplace Environment.
- High Resolution
- Equipped With Precise Sensors And Control Systems, It Achieves Fine Accuracy In Winding Positioning And Tension Control.
- Precise Wiring
- The Winding Process Is Highly Accurate, Ensuring Consistent Coil Placement And Avoiding Overlaps Or Gaps.
- Compact Structure
- The Machine Has a Space-Saving Design, Making It Suitable For Small Workshops Or Production Lines With Limited Space.
- Outstanding Appearance
- It Features a Modern And Professional Design, Enhancing Both Functionality And Visual Appeal In Industrial Settings.
Product Application
- Electronics Manufacturing
- Electric Motors & Generators
- Automotive Industry
- Medical Equipment
- Energy & Power Systems
- Consumer Appliances
