How Does a Heat Pipe Work?

What Is Heat Pipe technology and how does it work many people asks?

This is explained by phase-change heat transfer.

The structure of a heat pipe includes the following three main sections:

• Evaporator
• Adiabatic section
• Condenser

The process follows several steps.

Heat Absorption

• First, the evaporator absorbs heat.
• The working fluid quickly evaporates after absorbing heat.

Vapor Transportation

• The vapor then travels through the hollow section of the tube.
• Vapor shoots out quickly, as pressure differences exist.

Heat Release

• Afterward, vapor reaches the condenser.
• Upon reaching the condenser, it releases thermal energy.

Condensation

• After cooling, the vapor condenses back into liquid.

Liquid Return

• At the end, luminal structure brings back liquid.

Capillary action returns the liquid to the evaporator, allowing the cycle to continue.

Therefore, the heat pipe is highly efficient in transporting very large quantities of heat.

The two main components of a heat pipe

This allows us to better answer the question: What Is Heat Pipe technology?

1. Heat Pipe Shell

• The outer structure is the shell.
• Most manufacturers use copper, aluminum or stainless steel.

2. Wick Structure

Via capillary action, the wick draws up liquid.

Common wick types include:

• Sintered powder
• Grooved wick
• Mesh wick
• Fiber wick

3. Working Fluid

The fluid carries thermal energy.

Common fluids include:

• Water
• Ammonia
• Methanol
• Acetone
• Ethanol

4. Vacuum Environment

• Manufacturers remove air before sealing.
• Consequently, the working fluid evaporates smoothly.

Types of Heat Pipes

Different applications require different designs.

• Standard Heat Pipe

This design covers the majority of electronics cooling applications.

• Loop Heat Pipe

This designs allows for distant heat transfer.

• Pulsating Heat Pipe

This design employs flowing fluid oscillations.

• Vapor Chamber

A vapor chamber distributes heat over a flat area.

Several engineers compare [Heat Pipe vs Vapor Chamber] to choose the right cooling technology for their application.

• Flexible Heat Pipe

This design is made to Bend For A Smaller Installations.

• High-Temperature Heat Pipe

Going above and beyond, this model is made to perform in the toughest conditions.

Advantages of Heat Pipes

There are excellent advantages to heat pipes, and this is why many manufacturers select them.

• Extremely High Thermal Conductivity

Heat pipes transfer heat efficiently.

Therefore, system temperatures remain stable.

• No External Power

The heat transfer cycle happens naturally.

Consequently, operating costs stay low.

• Compact Structure

Heat pipes fit limited spaces.

Therefore, designers achieve greater flexibility.

• Long Service Life

Good heat pipes are years ahead.

Moreover, maintenance requirements remain minimal.

• Lightweight Design

Heat pipes add little weight.

For that reason, they are preferred by the aerospace and electronics industries.

• Environmental Benefits

For any situations, the cooling energy consumption is reduced by heat pipes.

Thus organisations make sustainability targets better.

Heat Pipe Materials

Material selection directly affects performance.

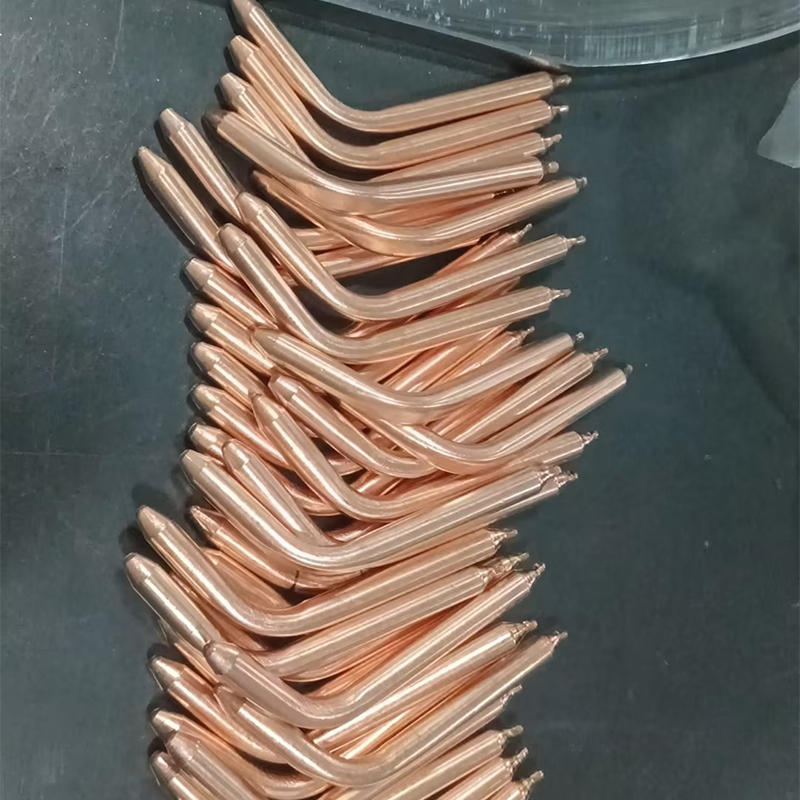

• Copper Heat Pipes

Copper offers excellent thermal conductivity, making it the preferred material for electronics cooling.

• Aluminum Heat Pipes

Aluminum provides lightweight performance and helps reduce the overall weight of the product.

• Stainless Steel Heat Pipes

Stainless steel resists corrosion effectively and performs well in demanding industrial environments.

• Titanium Heat Pipes

Titanium combines high strength with excellent corrosion resistance, which makes it ideal for aerospace applications.

Heat Pipe Manufacturing Process

Mostly customers who are searching for What Is Heat Pipe also search for : Production Methods

No thanks to modern factories that follow an unyielding manufacturing process.

• Tube Cutting

Manufacturers prepare copper tubes.

• Wick Manufacturing

After tube preparation, factories create the wick structure.

• Wick Insertion

Technicians then insert the wick inside.

Cleaning Process

Afterward, manufacturers remove contaminants.

• Vacuum Degassing

Vacuum systems then remove residual gases from the tube.

• Water Filling

Then factories inject working fluid.

• End Sealing

Finally, sealing equipment closes both ends of the heat pipe.

Copper Tube End Closing Machine Internal

• Performance Testing

Finally, engineers verify thermal performance.

Since quality control is still of utmost importance, manufacturers monitor every step closely.

Heat Pipe vs Vapor Chamber

Many engineers compare these technologies.

• Heat Pipe Advantages
• Lower manufacturing cost
• Simple structure
• Easy installation
• High reliability
• Vapor Chamber Advantages
• Better heat spreading
• Larger cooling surface
• Higher power density support

Typically laptops and servers commonly will have both technologies in conjunction with each other.

Heat Pipe Applications

The product serve many industries.

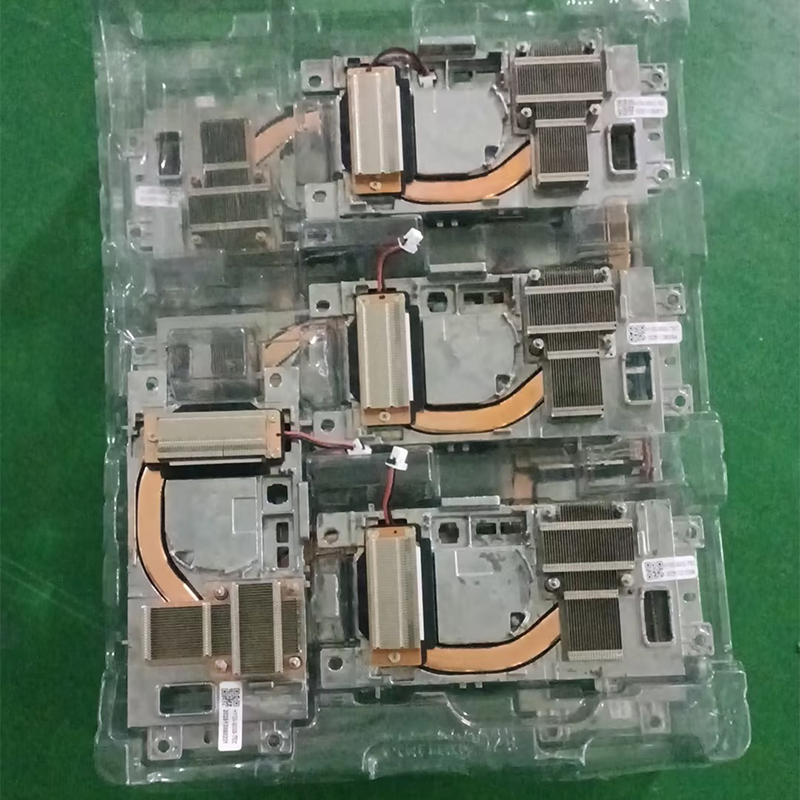

• Consumer Electronics

Heat pipes are relied on heavily in laptops.

Additionally, gaming systems often need cooling.

• Data Centers

Based on that we know servers become hot,Generating heat.

Therefore, advanced cooling remains essential.

• Electric Vehicles

Battery systems require temperature control.

So, heat pipes enhance both safety and efficiency.

• Aerospace Industry

Thermal management for aircraft electronics has to be fail-safe.

• Renewable Energy

Heat pipes are often used in solar energy systems.

• Medical Equipment

Medical devices require stable temperatures.

• Telecommunications

Cooling systems are critical for the functioning of 5G infrastructure.

How to Select the Correct Heat Pipe

Heat pipe selection is dictated by several factors.

• Heat Load

Determine required heat transfer capacity.

• Installation Space

Measure available installation dimensions.

• Operating Temperature

Consider maximum and minimum temperatures.

• Orientation Requirements

Certain applications want you to mount them in specific places.

• Material Compatibility

Choose only the materials that are environmental friendly

• Cost Considerations

Balance performance and budget carefully.

Therefore, engineering evaluation remains important.

Future trends in heat pipe technology

Heat pipe technology continues evolving.

AI servers require increasingly powerful cooling solutions.

Electric vehicles continue to generate higher thermal loads as battery capacity grows.

At the same time, semiconductor technologies keep advancing, creating new thermal management challenges.

Therefore, manufacturers develop:

• Ultra-thin heat pipes
• High-capacity vapor chambers
• Flexible thermal systems
• Hybrid cooling solutions

Thus, demand for advanced manufacturing equipment remains on the rise.

Why Choose Nanjing Bangwin Machine

Nanjing Bangwin Machine specializes in heat pipe manufacturing equipment and thermal management production lines, new generation table type solder pressing machines.

Website: Nanjing Bangwin Machine

The company provides:

• Heat Pipe Manufacturing Production Line
• Vapor Chamber Manufacturing Production Line
• Sintering Furnace
• Automatic Water Injection Machine
• Copper Tube End Closing Machine
• Decapromotors Vacuum Degassing Machines for Copper Heat Pipes
• Tube Processing Machine

Purchases the company also backs tailored automation solutions.

In addition, engineers also provide instruction on how it will be installed and technical support.

Hence manufacturers have enhanced their productivity and quality of their products.

FAQ

1. Define Heat Pipe in Layman Terms?

Heat pipes are passive devices that transport heat with great power by using the principal of running vapor and condensation.

2. What is the reason heat pipes provide better thermal conductivity than a solid piece of metal?

Heat pipes use phase-change technology. Because of this, they transmit heat way quicker.

3. What liquid is inside a heat pipe?

Manufacturers often use water, methanol, ethanol, acetone or ammonia.

4. What industries use heat pipes?

Heat pipes find applications in electronics, aerospace, automotive, telecommunications and other industries, as well as renewable energy.

5. Heat pipe versus vapor chamber: whats the difference?

Heat Pipes transfer heat in a linear fashion. Whereas, a vapor chamber disperses heat on a larger area.

6. What is the time duration for a heat pipe to last?

In good condition, a quality heat pipe lasts for many years.

7. What kind of heat pipe manufacturing equipment is available?

Then you can get to know about the business solutions from Nanjing Bangwin Machine.

8. Are heat pipes environmentally friendly?

Yes. These practices help decrease cooling energy use and promote the overall efficiency of the system.

Recommended External Resource

Industrial cylinders &elements Manufacturing Products:

Bangwin Gas Cylinder

Conclusion

You have Questions about What Is Heat Pipe, and The Answer is Much More than a Cooling Component. A heat pipe integrates evaporation, condensation, and capillary action to provide remarkable thermal conduction capabilities.

Thus heat pipes are used by industries globally for heat management. On top of that, demand keeps rising as electronics, electric vehicles and AI systems advance.

Nanjing Bangwin is your one-stop shop for an ingenious thermal manufacturing technology including advanced heat pipe production equipment and complete manufacturing solution.
